Eaton 10250ED952 10250t Pushbutton 30.5 mm

Product Description

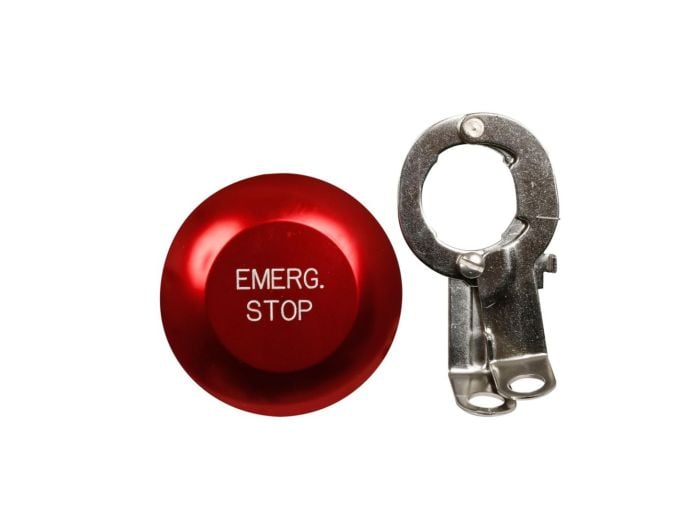

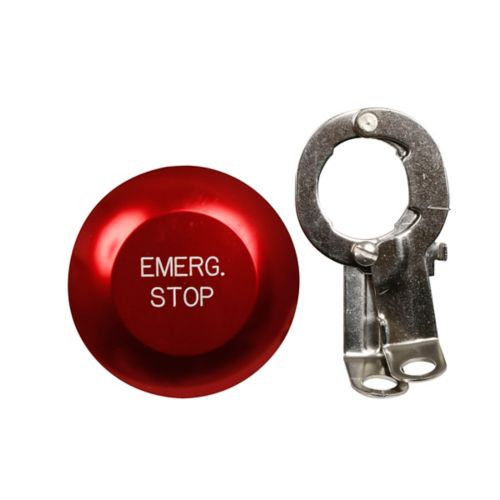

The Eaton 10250ED952 10250T pushbutton features a jumbo mushroom head and is spring loaded. The 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die-cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent the build-up of liquid inside the operator.

• Eaton contact blocks feature enclosed silver contacts with pointed reliability nibs
• Nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
• Latched by padlockable attachment in down position (spring loaded)

Product Highlights

The Eaton 10250T series features a zinc die cast construction with chrome plated housing and mounting nut. These devices incorporate grounding nibs to enhance the ground connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250ED952

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250ED952
• UPC: 782113328850
• Product Length/Depth: 4.4 in
• Product Height: 3.3 in
• Product Width: 3.4 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Operators can be latched down without a padlock. Padlock not included. Jumbo mushroom heads are not recommended for use in applications where exposure to ultraviolet light exists.
• Product Type: Pushbutton
• Type: Heavy Duty Oil/Watertight
• Actuator: Jumbo mushroom head
• Operating mode: Latch down, spring loaded
• Size: 30.5 mm
• UNSPSC: 39122216
• Material: Die-Cast Zinc
• Application: Stationary Machinery, Equipment Outside Factory and Other Applications
• Operator Type: Jumbo Mushroom Head
• Contact Rating: 10 A at 600 VAC/VDC
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Temperature Rating: 1 to 150
• Series: 10250T
• NEMA: 4,4X,13
• Operating Cap: Jumbo Mushroom, Padlocking
• Bezel/Housing: Metal, Chrome
• Contact Mode: Latch Down, Spring Loaded
• Manufacturer Series: 10250T
• MPN: 10250ED952
• Brand: CUTLER HAMMER
• Condition: New
• Manufacturer Part Number: 10250ED952
• Manufacturer: Eaton
• Product Series: 10250T
• Family Series: Eaton Switches, 10250T Series
• Description: Eaton 10250T pushbutton, 10250T, Jumbo mushroom head, Red, Latched by padlockable attachment in down position spring loaded, 30.5 mm
• Illuminated: No
• Mounting: 30 mm
• Bezel: Metal Round
• Lens/Button Shape: Mushroom
• Operator Color: Red
• Terminal Type: Screw
• NEMA Rating: NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
• Approvals: CE, CSA, UL
• Net Weight: 0.5 lbs
• Gross Weight: 0.5 lbs
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Locking
• Functions: Padlock in the down position - Red (EMERGECY. STOP) - spring loaded
• Technical compatibility with: 10250 series
• Manufacturer product status: Commercialized
