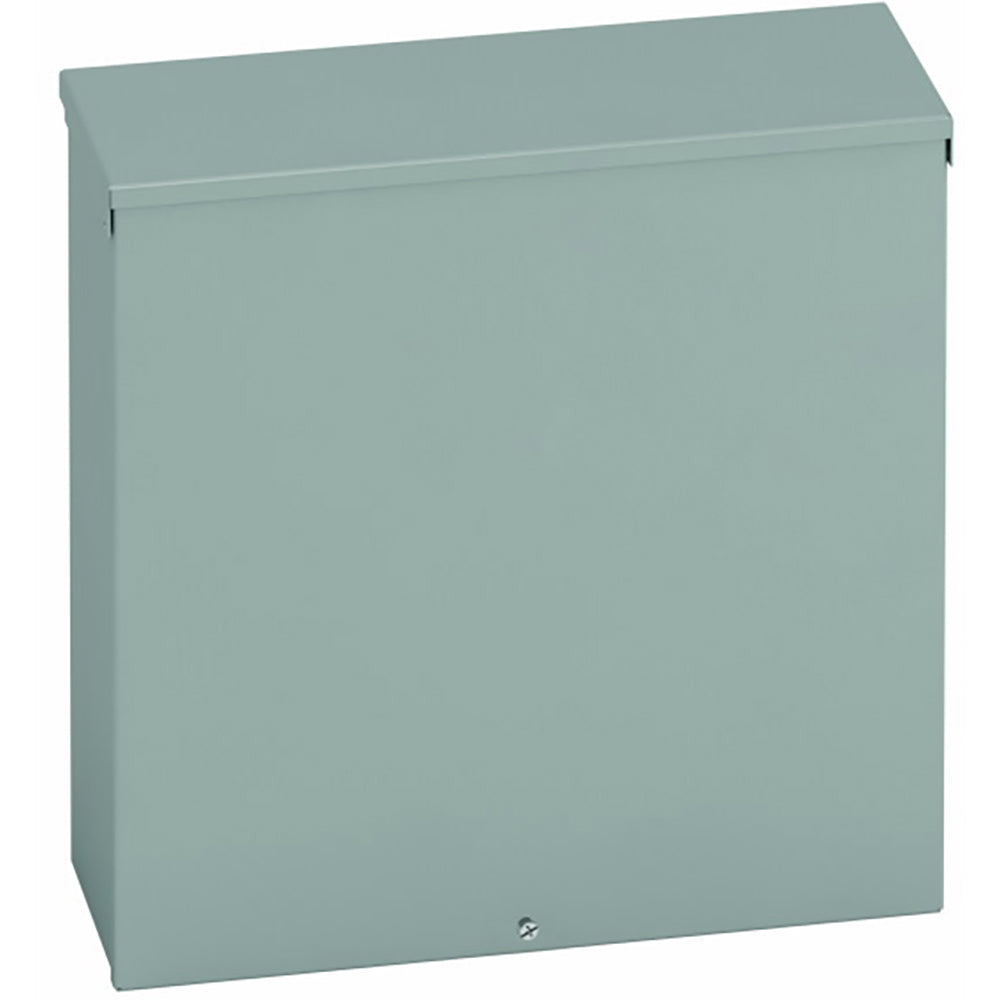

Eaton 10104RTSC B-Line Series Type 3/3R Junction Box 10x10x4

Product Description

The Eaton 10104RTSC is a B-Line series Type 3/3R junction box constructed of 16-gauge carbon steel for surface mounting. It provides a NEMA 3R rated enclosure with a screw cover and flanged cover closure, a small single door, embossed thru holes for mounting, a rain hood, plated screws, and five bottom knockouts. Overall dimensions are approximately 10 in height x 10 in width x 4 in depth and the unit weighs about 6.4 lb.

• NEMA 3R carbon steel enclosure, 16-gauge construction with painted ANSI 61 gray finish
• Screw cover with flanged cover closure, small single door, embossed thru holes for surface mounting
• Includes rain hood, plated screws and five bottom knockouts; overall dimensions 10 in H x 10 in W x 4 in D

Product Highlights

Type 3/3R surface-mount carbon steel junction box, 10x10x4, screw cover, five bottom knockouts

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10104RTSC
• Country of Origin: US

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: 10104RTSC
• Product Name: B-Line series Type 3/3R junction box
• Model: RTSC enclosure
• NEMA Rating: 3R
• Material: Carbon steel
• Wall Thickness: 16 gauge
• Finish: Painted (ANSI 61 gray)
• Cover Type: Screw cover
• Closure Type: Flanged cover
• Mounting Method: Surface mount
• Style: Small single door
• Embossed Mounting Holes: Embossed thru holes
• Bottom Knockouts: 5
• Special Features: Rain hood, plated screws, conduit knockouts
• Height: 4 in
• Width: 10 in
• Length: 10 in
• Weight: 6.4 lb
• Certifications: UL 50; CSA C22.2; NEMA
• Country of Origin: US
• UPC: 782051342802
• UNSPSC Code: 39120000
• Alternate Manufacturer Part Number: 78205134280
