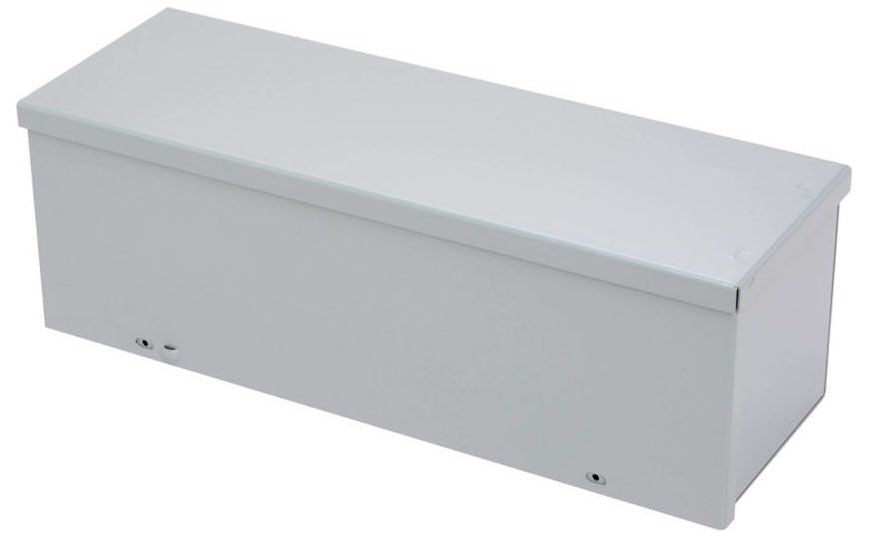

Eaton 101024GRTNK B-Line Wiring Trough (10 in H x 24 in L x 10 in W)

Product Description

Eaton 101024GRTNK is a B-Line series wiring trough designed for cable and wire management, measuring 10 in height, 24 in length, and 10 in width. The trough is constructed of 16 gauge steel with an ANSI 61 gray finish, features embossed through holes for mounting, a screw-secured cover with plated screws, and no knockouts. It is NEMA 3R/IP24 rated and carries UL and CSA approvals for raintight applications and control/power cable routing.

• Dimensions: 10 in H x 24 in L x 10 in W; 16 gauge steel construction with ANSI 61 gray finish
• Enclosure: NEMA 3R / IP24 rated; UL 870 and CSA C22.2 approvals listed
• Features: Embossed through holes for mounting, screw cover secured with plated screws, no knockouts

Product Highlights

10 in H x 24 in L x 10 in W wiring trough, 16 gauge steel, NEMA 3R/IP24 rated, embossed mounting holes, screw-secured cover, UL and CSA approvals

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 101024GRTNK
• Country of Origin: USA

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: 101024GRTNK
• Catalog Number: 101024 GRT NK
• Product Type: Wiring trough
• Series: B-Line
• Dimensions (Height): 10 in
• Dimensions (Length/Depth): 24 in
• Dimensions (Width): 10 in
• Material: Steel
• Material Thickness: 16 gauge
• Finish: ANSI 61 gray
• Cover Type: Screw cover (secured with plated screws)
• Knockouts: No
• Mounting Method: Embossed through holes
• Special Features: Cover secured with plated screws; embossed thru holes
• NEMA Rating: NEMA 3R
• IP Rating: IP24
• Certifications/Approvals: UL 870; CSA C22.2 (UL listed; CSA certified)
• Application: House runs of control/power cable, cable/wire junction, distribution/termination
• Category: Nema Type 3R Wireway & Fittings
• Product Weight: 20.177 lb
• UPC: 782051107500
• Country of Origin: Made in USA
• UNSPSC: 39131714
• Unique Product Key: 6054907
• Applicable Standard: IEC 529
