Eaton 1009771ch meter socket 600 VAC 320 A 3 ph

Product Description

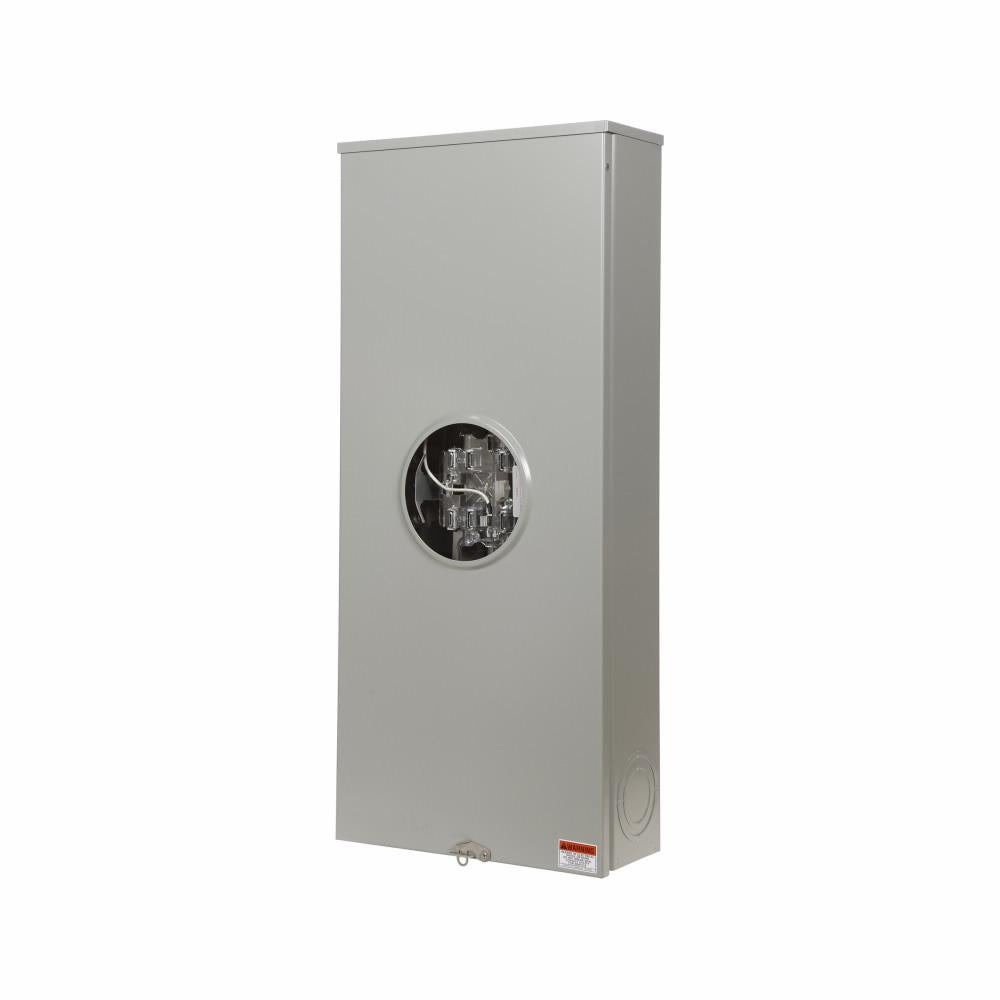

The EATON 1009771CH meter socket houses electrical watthour meters in residential and commercial buildings. This 4-wire lever bypass meter socket is rated for 600 VAC and 320 A, and is designed for 3-phase systems. It supports bottom, overhead, top, and underground feed types and features 7 jaws and a ringless cover.

• Block assembly base exceeds 400 in-lb of torque for durability.
• One-piece, die-run enclosure eliminates tampering and extends product life.
• Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination.

Product Highlights

EATON's 1009771CH meter socket provides a utility-approved solution for single-position metering applications, offering a wide range of features for secure and reliable electrical connections.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1009771CH

Technical Specifications

• Cover Type: Ringless
• Feed Type: Bottom/Overhead/Top/Underground
• Hub Type: Open
• Number of Jaws: 7
• Terminal Type: Lug
• Type: 4-Wire Lever Bypass
• Wire Size: (2) 6 AWG to 350 kcmil
• Voltage Rating: 600 VAC
• Amperage Rating: 320 A
• Phase: 3 ph
• Product Name: Eaton meter socket
• Catalog Number: 1009771CH
• UPC: 786685346625
• Product Length/Depth: 5.68 in
• Product Height: 34.5 in
• Product Width: 15 in
• Certifications: UL Listed
• Product Type: Meter socket
• Number of wires: Four-wire
• Hub type: Hub opening
• Security: Ringless
• Voltage rating: 600 V
• Bypass: Lever
• Utility approvals: IL : Ameren MO : Ameren
• Line: (2) #6-350 kcmil
• Load: Dual #6-350 kcmil
