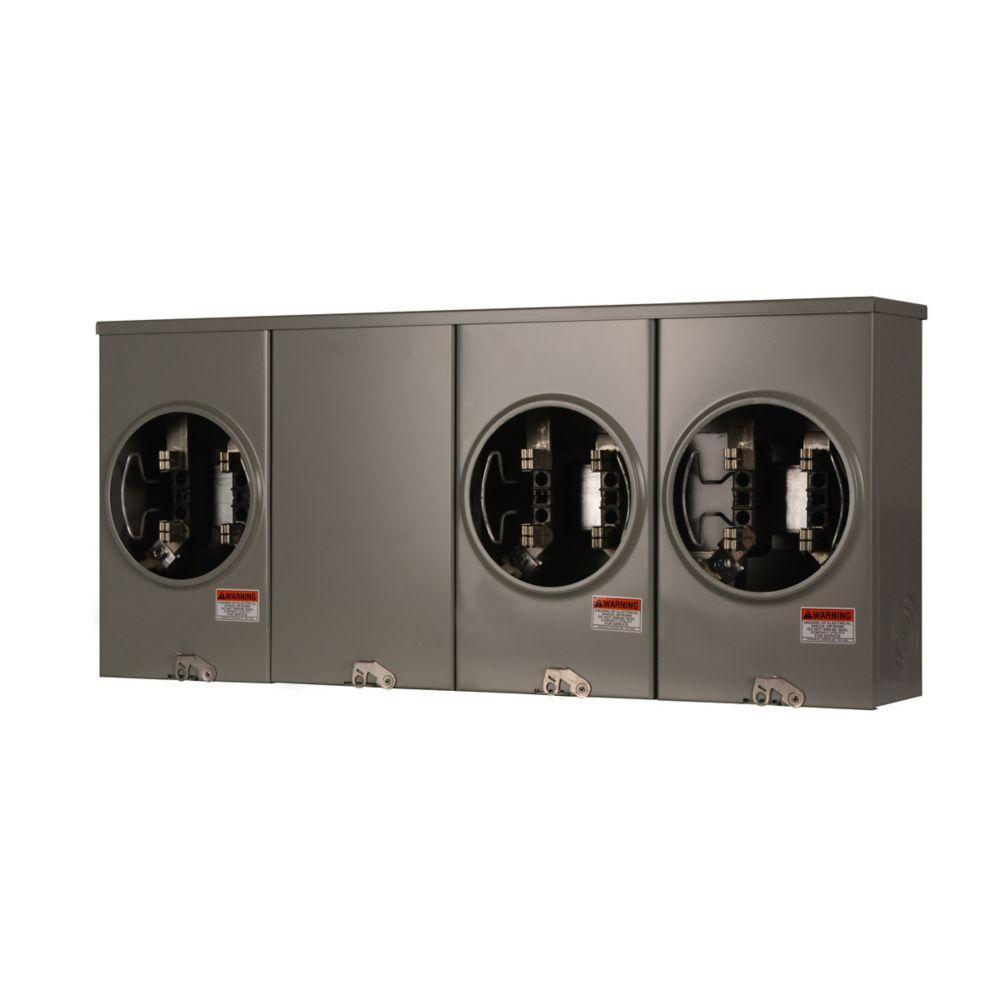

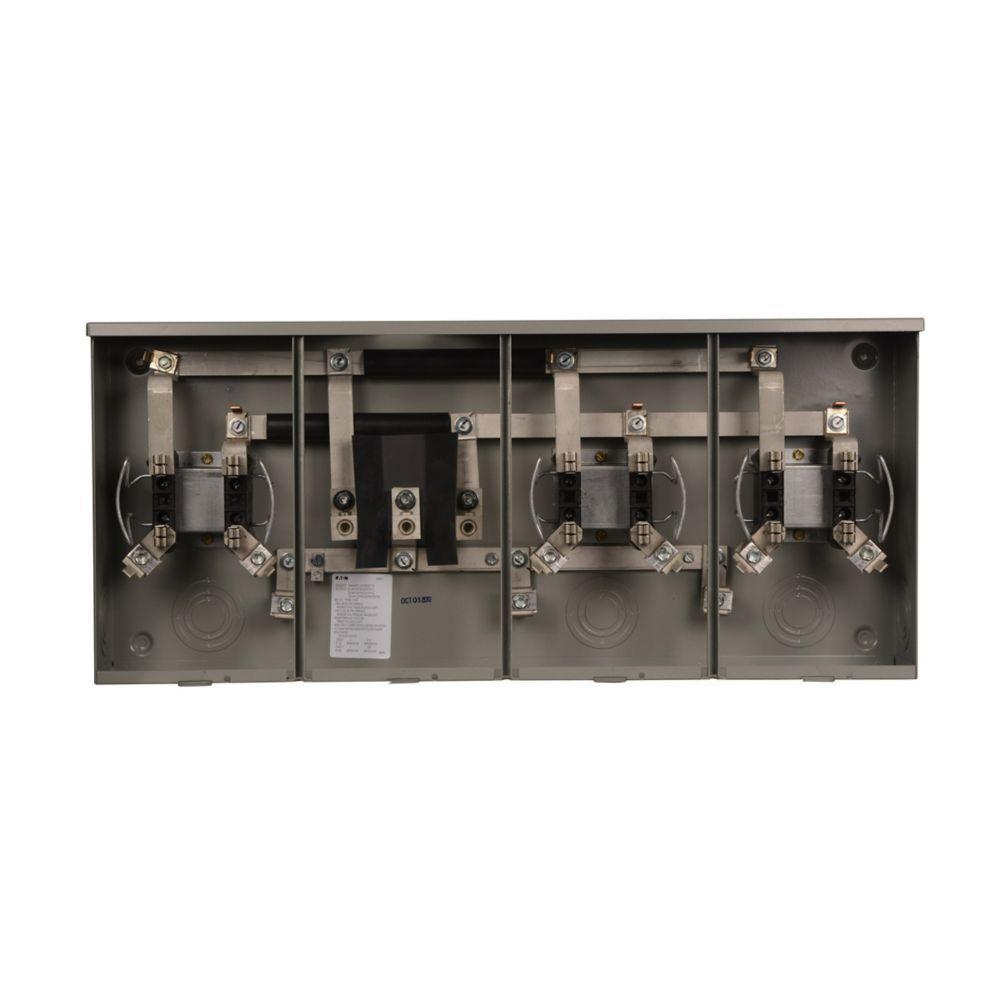

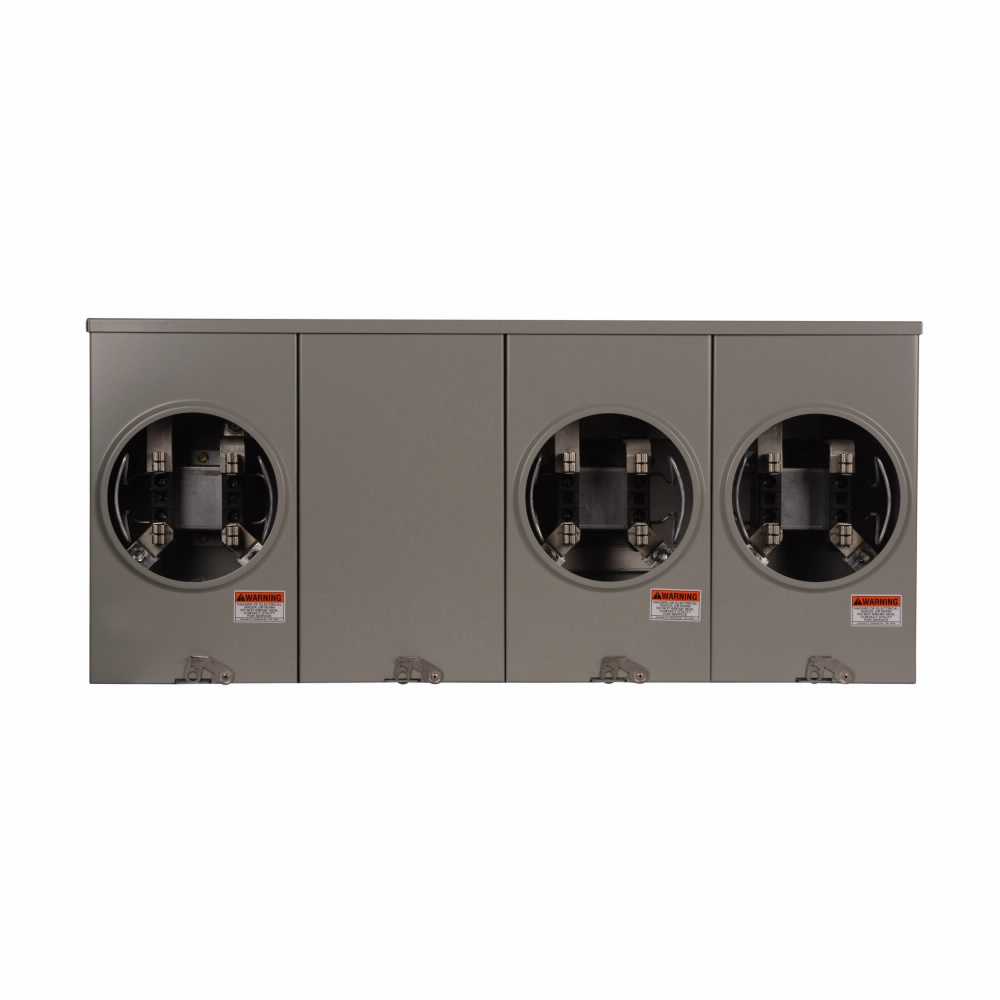

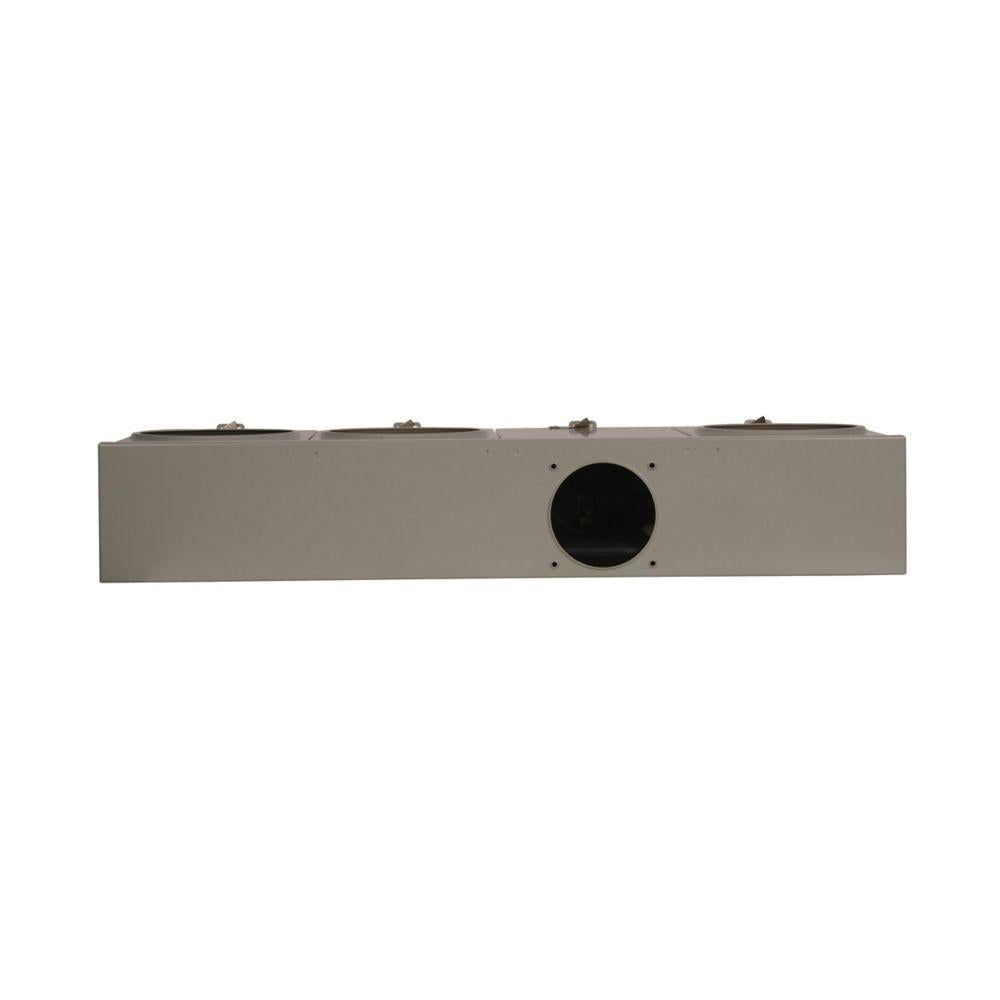

Eaton 1004404BCH MtrSkt 200A Ring 3-Position Meter Socket

Product Description

Eaton offers the 1004404BCH meter socket, designed for reliable power distribution. This 200 Amp meter socket is suitable for both overhead and underground feed applications. It features a four-jaw design for single-phase use, accommodating wire sizes from six to three hundred fifty kcmil. The product is utility approved and ideal for residential meter installations, mobile homes, and temporary power setups at construction sites.

• Voltage Rating: 600 Volts
• UL Listed for safe operation
• Three-wire configuration with a horn bypass

Product Highlights

This Eaton meter socket ensures ease of installation and maintenance, thanks to its efficient design.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Amperage Rating: 200 Amp
• Dimensions: 5.38 inches (Length) x 32.47 inches (Width) x 14.13 inches (Height)
• Phase: 1
• Number of Jaws: 4
• Hub Size: 5 inches x 5 inches
• Wire Size: #6 to 350 kcmil
• Hub Type: Coverplate
• Item Type: Meter socket
• Feed Type: Overhead/Underground
