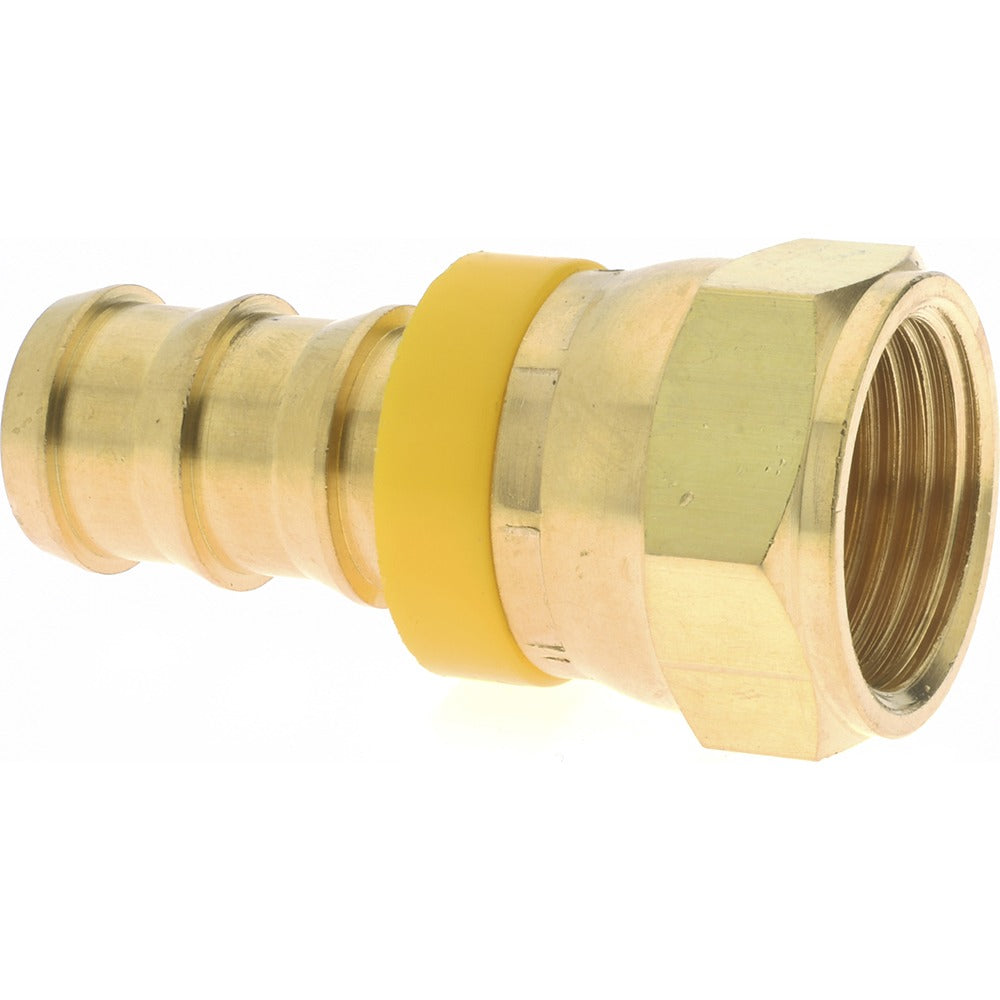

Eaton 10012B-612 Barbed Hose Female Connector 3/4 in Brass

Product Description

The EATON 10012B-612 is a barbed push-on hose female connector designed for use in hydraulic and fluid-transfer systems requiring a secure, threaded hose termination. The fitting accepts a 3/4 inch inside diameter push-on hose and connects via a 1-1/16-12 UNF threaded interface. Constructed entirely from brass, it delivers corrosion resistance suitable for hydraulic oil, water, and compatible fluid service. With a maximum working pressure rating of 3300 psi, this connector is built for demanding pressure environments. Licensed HVAC, plumbing, and hydraulic technicians working on medium- to high-pressure hose assemblies are the typical installers.

This fitting is used in hydraulic hose assemblies where a female threaded end connection is required at the hose termination point. The barbed design allows the hose to be pushed onto the fitting without the need for a separate ferrule or crimp tool in applicable push-on hose configurations. The 1-1/4 inch cut-off allowance and 2.66 inch overall length make it suitable for standard hose-assembly bench work in industrial, mobile equipment, and fluid-power applications.

Key Features

• 3/4 inch barb size accommodates standard 3/4 inch inside diameter push-on hose
• 1-1/16-12 UNF threaded connection for secure female port engagement
• 3300 psi maximum working pressure rating for demanding hydraulic service
• Full brass construction provides corrosion resistance across a wide range of compatible fluids
• 1-1/4 inch hex size allows standard wrench installation and removal
• 1-1/4 inch cut-off allowance accommodates proper hose prep and assembly

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and fluid-transfer hose assemblies requiring a 3/4 inch barbed female connector with a 1-1/16-12 UNF threaded end.

Installation Notes

Installation should be performed by a qualified hydraulic or plumbing technician. Depressurize and drain the hydraulic or fluid system completely before removing or installing any fittings. Use the 1-1/4 inch hex with an appropriate open-end or combination wrench and apply thread sealant compatible with the system fluid where required. Inspect the hose cut end for squareness and burrs before seating the barb to ensure a leak-free assembly.
