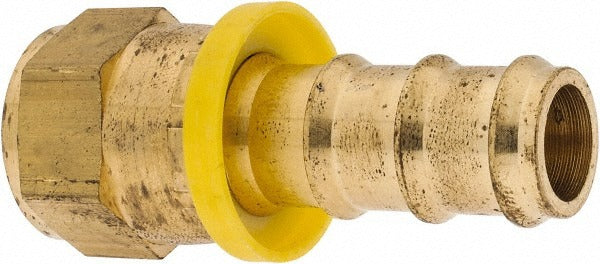

Eaton 10010B-610 Barbed Hose Female Connector Brass

Product Description

The EATON 10010B-610 is a barbed push-on hose female connector designed for hydraulic and fluid-transfer hose assemblies. Machined from brass, this fitting accepts a 5/8-inch inside-diameter push-on hose and threads onto a 7/8-14 UNF male port. The overall length is 2.54 inches, the hex is 1 inch across flats, and the cut-off allowance is 1-1/8 inches. This connector is installed by licensed hydraulic technicians, plumbers, and fluid-system mechanics who need a leak-free transition between a threaded port and a push-on hose end without the need for a clamp or ferrule during assembly.

This fitting is used in residential and light commercial fluid-transfer systems, hydraulic lines, and lubrication circuits where a 7/8-14 UNF threaded port mates to a 5/8-inch ID push-on hose. Typical install scenarios include hydraulic power units, lubrication manifolds, and plumbing supply lines where a compact, wrench-driven brass connector is required. Sold individually, it suits single-unit repair and multi-unit assembly work equally.

Key Features

• Brass construction resists corrosion and is compatible with a wide range of hydraulic fluids and water-based media
• 7/8-14 UNF threaded end provides a secure, standard-fitment connection to UNF-ported equipment
• 5/8-inch barbed end accepts push-on hose without requiring a separate clamp or sleeve for assembly
• 1-inch hex allows installation with a standard open-end or combination wrench
• 1-1/8-inch cut-off allowance simplifies hose-end preparation before seating
• Compact 2.54-inch overall length suits tight-clearance plumbing and hydraulic installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for fluid-transfer and hydraulic systems using 7/8-14 UNF threaded ports and 5/8-inch inside-diameter push-on hose.

Installation Notes

Installation is performed by hydraulic technicians or licensed plumbers. Shut off system pressure and depressurize all lines before removing or installing any fitting. Use a calibrated torque wrench and follow the equipment manufacturer's port torque specifications — no numeric torque value is provided here. Inspect the mating UNF port threads for damage before installation and apply an appropriate thread sealant as required by system specifications.
