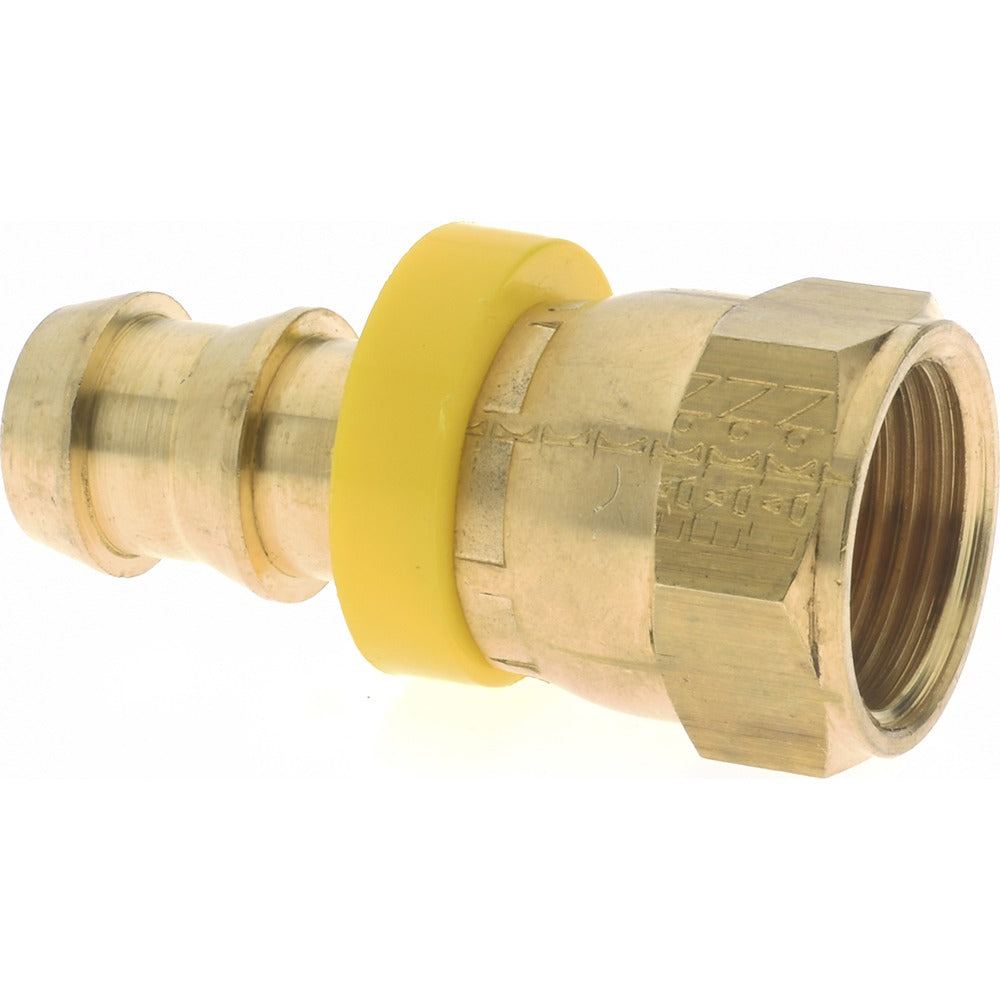

Eaton 10008B-608 Barbed Hose Female Connector 1/2 in Brass

Product Description

The EATON 10008B-608 is a barbed push-on hose female connector designed for hydraulic and fluid-transfer line assemblies. It accepts a 1/2 inch barb and features a 3/4-16 UNF threaded end for secure connection to compatible ports and fittings. Constructed from brass, this connector offers good corrosion resistance and is rated to 4000 psi maximum working pressure, making it suitable for demanding hydraulic circuit applications. The fitting measures 1.9 inches in length with a 7/8 inch hex for wrench engagement. It is typically installed by hydraulic system technicians, plumbers, and industrial maintenance professionals.

This female connector is suited for use in hydraulic hose assemblies, fluid power systems, and general industrial plumbing where a push-on barb termination is required at a UNF-threaded port. The 1 inch cut-off allowance gives installers working room during hose preparation. Its compact brass construction makes it appropriate for both mobile and stationary hydraulic equipment in light industrial and commercial environments.

Key Features

• 3/4-16 UNF threaded connection for compatibility with standard UNF hydraulic ports
• 1/2 inch barb inside diameter for push-on hose attachment
• Rated to 4000 psi maximum working pressure
• Brass construction for corrosion resistance in fluid-transfer applications
• 7/8 inch hex allows standard wrench installation and removal
• 1 inch cut-off allowance simplifies hose preparation at the bench

Compatibility

Designed as an OEM-style replacement or serviceable fitting for hydraulic hose assemblies requiring a 3/4-16 UNF female threaded port and a 1/2 inch push-on barb termination.

Installation Notes

Installation should be performed by a qualified hydraulic technician or plumber familiar with fluid power systems. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Use a wrench on the 7/8 inch hex to tighten to the fitting port; do not overtighten brass fittings into threaded ports. Inspect the barb and hose end for damage before assembly and confirm the hose clamp or retention method is rated for the system working pressure.
