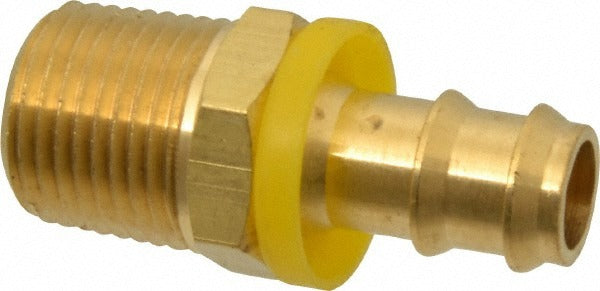

Eaton 10008B-108 Barbed Hose Male Connector 1/2 Npt Brass

Product Description

The EATON 10008B-108 is a barbed push-on hose male connector designed for secure, threaded hose termination in fluid-handling systems. Built from brass, this fitting accepts a 1/2-inch barb and threads into a 1/2-14 NPT female port. It measures 2.1 inches in length with a 7/8-inch hex for wrench engagement, and carries a maximum working pressure rating of 6000 psi. The 1-3/16-inch cut-off allowance provides the installer with a clear reference for hose preparation before seating. This fitting is installed by licensed plumbers, HVAC technicians, and fluid-system mechanics working with push-on hose assemblies in both industrial and trade applications.

This connector is suited for use in hydraulic, pneumatic, and general fluid-transfer line assemblies where a reliable barbed push-on connection to an NPT-threaded port is required. The all-brass construction makes it appropriate for systems where corrosion resistance and moderate pressure tolerance are priorities. Typical install scenarios include equipment plumbing, coolant lines, and compressed-air distribution where 1/2-inch hose ID is specified and an NPT entry point is present on the mating component.

Key Features

• 1/2-inch barb size for secure push-on hose retention
• 1/2-14 NPT male thread for standard threaded port entry
• Brass construction for corrosion resistance in fluid-transfer service
• 6000 psi maximum working pressure rating
• 7/8-inch hex allows standard wrench installation
• 1-3/16-inch cut-off allowance aids accurate hose preparation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for fluid-handling systems requiring a 1/2-inch barbed push-on male connector with 1/2-14 NPT male thread.

Installation Notes

Installation should be performed by a qualified plumber or fluid-systems technician. Depressurize and drain the system completely before removing or installing any fitting. Apply thread sealant or PTFE tape to the NPT threads in accordance with the applicable IPC or system manufacturer guidelines. Do not exceed the rated working pressure for the hose and fitting assembly.
