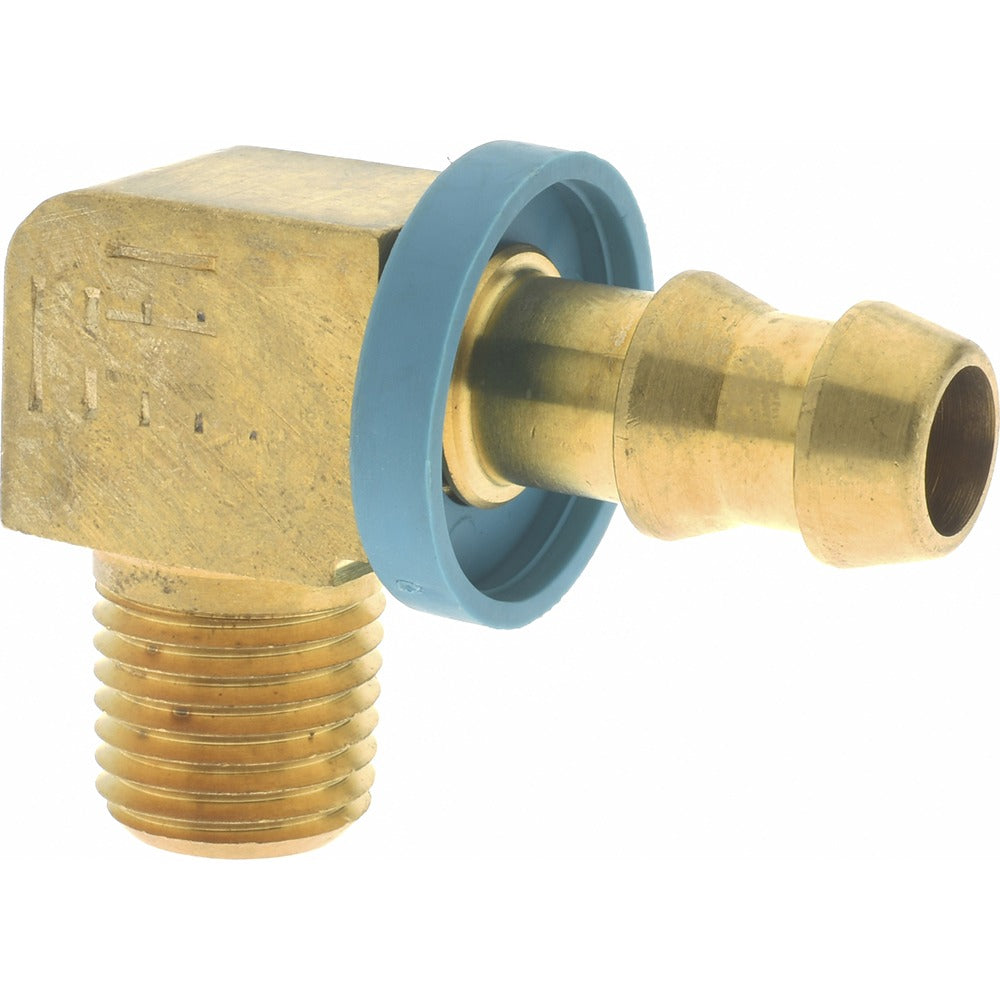

Eaton 10006B-C04 Barbed Hose Male Elbow 3/8 in Brass

Product Description

The EATON 10006B-C04 is a barbed push-on hose male elbow fitting designed for use in hydraulic and fluid transfer hose assemblies. Machined from brass, it provides a reliable threaded connection on one end and a barbed push-on connection on the other. The male threaded end uses a 1/4-18 NPT thread standard, while the barb accepts 3/8 inch inside diameter hose. The fitting is rated for a maximum working pressure of 9500 psi, making it suitable for demanding hydraulic service. A 9/16 inch hex flat allows for wrench installation and a secure, leak-free seal at the NPT port.

This fitting is used in hydraulic hose routing applications where a 90-degree direction change is required between a threaded port and a push-on hose line. It is commonly installed in mobile hydraulic equipment, industrial machinery, and fluid power systems where brass fittings are specified for compatibility with the system fluid. Licensed hydraulic technicians and fluid power specialists typically install these fittings as part of hose assembly fabrication or equipment maintenance.

Key Features

• 1/4-18 NPT male threaded end for standard port connections
• 3/8 inch barb for push-on hose attachment
• Maximum working pressure rated at 9500 psi
• Brass construction for corrosion resistance in fluid power applications
• 9/16 inch hex allows wrench tightening for a secure NPT seal
• 3/8 inch cut-off allowance accommodates hose end preparation

Compatibility

Designed as an OEM-style replacement or new-installation brass barbed male elbow fitting for hydraulic and fluid transfer hose assemblies using 3/8 inch inside diameter push-on hose with 1/4-18 NPT threaded ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and drain the hydraulic system fully before removing or installing any hose fittings. Apply an appropriate thread sealant to the NPT threads before tightening; hand-start threads to avoid cross-threading, then tighten with a wrench to the flat. Do not over-tighten NPT connections, as brass fittings can crack under excessive torque.
