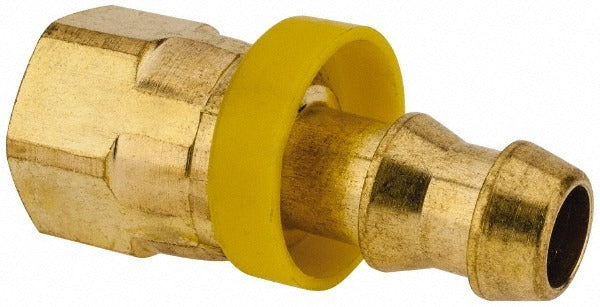

Eaton 10006B-606 Barbed Hose Female Connector 3/8 in Brass

Product Description

The EATON 10006B-606 is a barbed push-on hose female connector designed for hydraulic and fluid-transfer line assemblies. It accepts a 3/8 inch inside diameter push-on hose and threads into a female port using a 9/16-18 UNF thread. Constructed entirely from brass, it offers corrosion resistance in a wide range of fluid media. The fitting measures 1.62 inches in length with an 11/16 inch hex for wrench engagement and a 7/8 inch cut-off allowance. Rated to 5000 psi maximum working pressure, it is suited for demanding hydraulic plumbing and fluid-power applications. Plumbers, hydraulic technicians, and industrial maintenance professionals typically install this fitting in fixed or mobile fluid systems.

This connector is used wherever a push-on hose must terminate at a threaded female port in residential, commercial, or light industrial fluid-power systems. The 9/16-18 UNF thread is a common standard in hydraulic line components, making this fitting a straightforward replacement or new-installation choice in compact hydraulic circuits, fuel systems, and similar low-to-medium flow assemblies requiring a secure barbed-hose connection.

Key Features

• Brass construction provides corrosion resistance across a broad range of fluid media
• 5000 psi maximum working pressure rating for demanding hydraulic service
• 9/16-18 UNF threaded connection for compatibility with standard hydraulic ports
• 3/8 inch barb size suits common push-on hose inside diameters
• 11/16 inch hex allows standard wrench installation without slipping
• 7/8 inch cut-off allowance accommodates clean hose preparation before assembly

Compatibility

Designed as an OEM-style replacement or new-installation fitting for push-on hose assemblies requiring a 9/16-18 UNF female threaded connection with a 3/8 inch barb.

Installation Notes

Installation should be performed by a qualified hydraulic or plumbing technician. Depressurize and isolate the hydraulic or fluid system completely before removing or installing any fitting. Use an appropriate wrench on the 11/16 inch hex to tighten; do not use the hose or barb section as a gripping surface. Inspect hose end for clean, square cuts before pushing onto the barb to ensure a leak-free connection.
