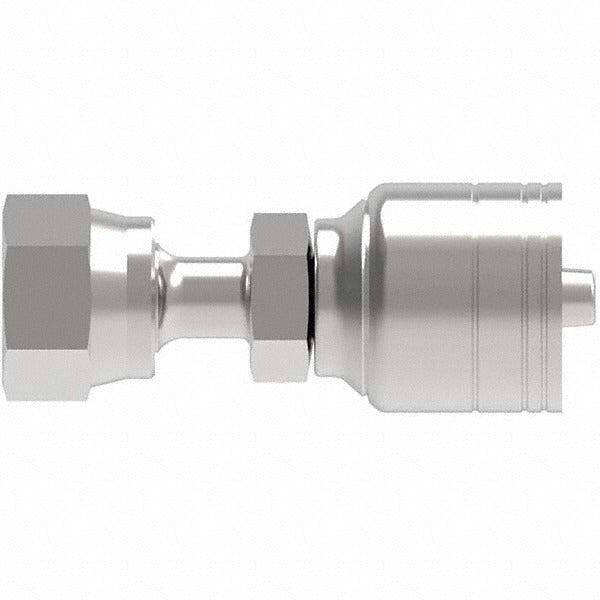

Eaton 08Z-S72-BG Female Ors Swivel Fitting 8mm 1-3/16-12

Product Description

The EATON 08Z-S72-BG is a female ORS swivel fitting designed for high-pressure hydraulic hose assemblies. It accepts an 8 mm hose size and features a 1-3/16-12 thread, the standard straight-thread O-ring face seal (ORS) configuration used widely in mobile and industrial hydraulic systems. Constructed from steel with a FOR-SEAL shaft type, this fitting provides a leak-resistant metal-to-metal face seal when properly torqued against a mating ORS port. It weighs 0.53 pounds and measures 3.29 inches in length with a 1.38-inch width and 1.38-inch height. Hydraulic technicians and fluid power specialists use this fitting to terminate or route hose lines in equipment requiring a swivel-end connection at the port.

This fitting is suited for mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic circuits where a swivel female ORS termination is required. The swivel design allows the hose to be positioned without twisting during installation, reducing assembly stress and minimizing hose torque. A 1-3/8 inch hex flat makes wrench engagement straightforward in confined spaces. It is packaged individually and sold in single-unit quantities.

Key Features

• Female ORS swivel configuration eliminates hose twist during installation
• 1-3/16-12 straight thread with O-ring face seal for leak-resistant port connection
• Steel construction for strength in high-pressure hydraulic applications
• FOR-SEAL shaft type for positive sealing at the mating face
• 1-3/8 inch hex size for standard wrench access
• Compact profile: 3.29 inches length, 1.38 inches width and height

Compatibility

Designed as an OEM-style replacement swivel fitting for hydraulic hose assemblies requiring an 8 mm hose size with a 1-3/16-12 female ORS swivel end connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed down the hydraulic system completely before removing or installing any fitting. Inspect the O-ring sealing face on both the fitting and the mating port for nicks or contamination before assembly. Torque to the equipment or hose assembly manufacturer specification and verify for leaks before returning the system to service.
