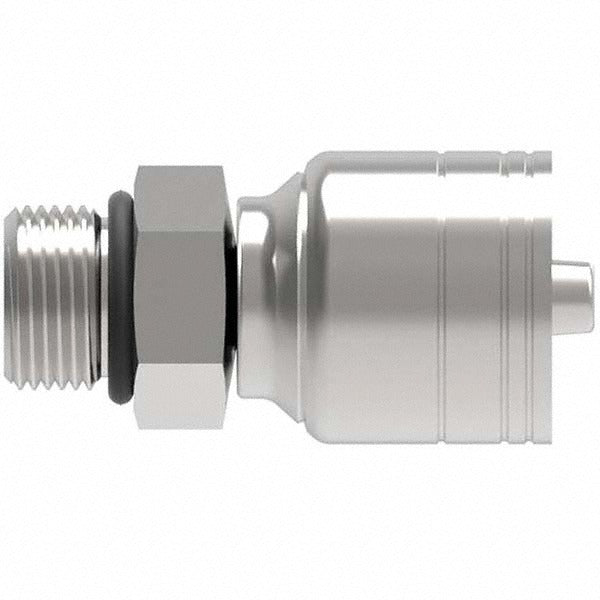

Eaton 08Z-P12-BG Hydraulic Hose O-ring Fitting 8mm

Product Description

The EATON 08Z-P12-BG is a male straight thread O-ring fitting designed for hydraulic hose assemblies. It provides a leak-resistant sealed connection between a hydraulic hose and a port or manifold using a straight thread with an O-ring face seal. The fitting is machined from steel for durability under high-pressure hydraulic system conditions. With a hose size of 8 mm, a thread size of 1-1/16-12 UN, and a hex size of 1-1/4 inches, it is sized for straightforward wrench installation. Licensed hydraulic technicians and fluid power mechanics are the primary installers for this type of fitting in industrial and mobile equipment applications.

This fitting is suited for use in hydraulic systems where a male straight thread O-ring connection is required at the hose end. Typical applications include mobile hydraulic equipment, industrial machinery, and fluid power circuits where a secure, vibration-resistant port connection is needed. The 8 mm hose size and 1-1/16-12 UN thread make it a common size for mid-range hydraulic circuits. It is sold individually and ships as a single-unit package.

Key Features

• Male straight thread O-ring fitting design provides a positive seal at the port face
• Steel construction for strength and resistance to hydraulic system pressures
• 1-1/16-12 UN thread size for compatibility with standard SAE straight thread ports
• 8 mm hose size for use in mid-range hydraulic hose assemblies
• 1-1/4 inch hex for standard wrench installation without special tooling

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies requiring a male straight thread O-ring connection with a 1-1/16-12 UN thread and 8 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and drain the hydraulic circuit fully before removing or installing any fittings. Inspect the O-ring for damage before assembly and ensure the mating port face is clean and free of nicks or burrs. Tighten to the fitting manufacturer's standard flats-from-finger-tight method; do not over-torque.
