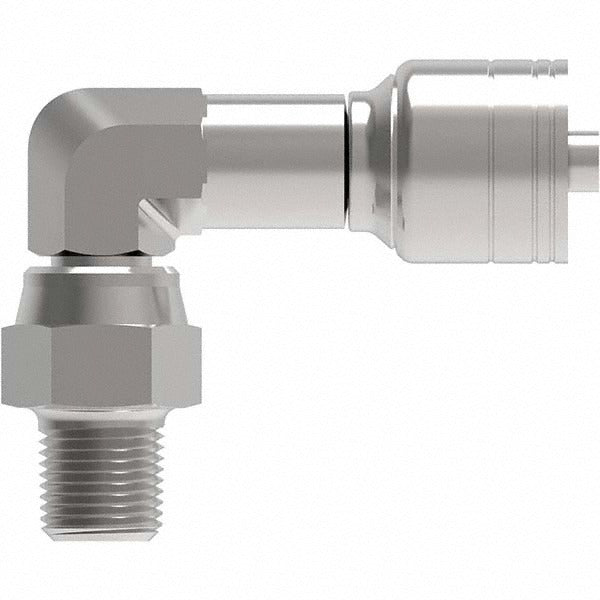

Eaton 08Z-M08-BG Hydraulic Swivel 90 Elbow 8mm 1/2-14 Nptf

Product Description

The EATON 08Z-M08-BG is a male pipe swivel 90-degree elbow fitting designed for hydraulic hose assemblies. It connects an 8 mm hose to a 1/2-14 NPTF male pipe thread at a 90-degree angle, allowing hose routing in tight or angled installation spaces. Constructed from steel, this fitting provides the structural integrity required for hydraulic system pressures. The swivel design permits rotational adjustment during assembly, reducing hose twist and simplifying routing in confined equipment bays. This type of fitting is installed by hydraulic system technicians and heavy equipment mechanics working on fluid power circuits.

This fitting is suited for use in mobile hydraulic systems, industrial fluid power equipment, and off-highway machinery where a 90-degree directional change is needed at the hose-to-port connection. It accepts an 8 mm hose end and threads into a 1/2-14 NPTF port. The NPTF thread form provides a pressure-tight seal through thread-to-thread interference, reducing reliance on sealant tape in many applications. Typical install scenarios include hydraulic cylinders, valve banks, and pump outlet connections.

Key Features

• Male pipe swivel 90-degree elbow configuration for angled hose routing
• 8 mm hose size with 1/2-14 NPTF male pipe thread
• Steel construction for durability in hydraulic pressure environments
• Swivel end allows rotational positioning to reduce hose twist during assembly
• NPTF thread form creates a pressure-tight mechanical seal at the port connection

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for fluid power systems requiring an 8 mm hose connection to a 1/2-14 NPTF male pipe port at a 90-degree angle.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed the hydraulic system fully before disconnecting any fittings or hose assemblies. Use appropriate wrenches sized to the fitting flats — do not use pipe wrenches on swivel bodies, as this can damage sealing surfaces. Verify thread compatibility and inspect the port threads before installation to ensure a proper NPTF seal.
