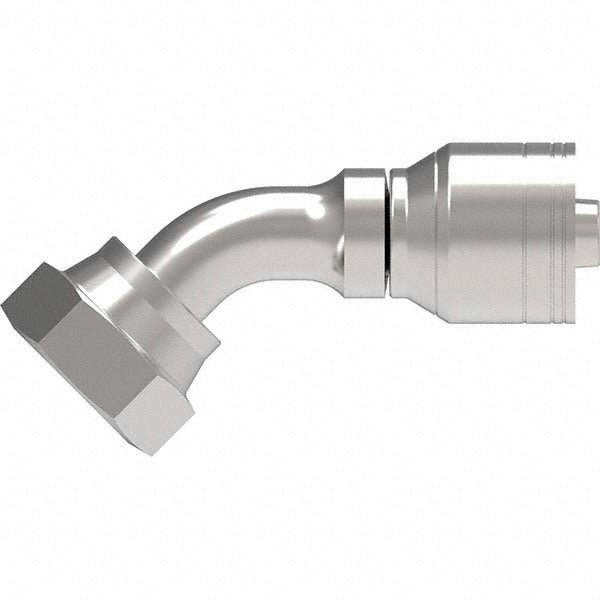

Eaton 08Z-L70-BG Female Ors Swivel 45 Elbow 8mm Steel

Product Description

The EATON 08Z-L70-BG is a female ORS swivel 45-degree elbow hydraulic hose fitting machined from steel. It is designed to connect hydraulic hose assemblies at a 45-degree angle, reducing stress on hose ends and allowing cleaner routing in tight equipment layouts. The fitting uses an O-ring face seal (ORS) design with a FOR-SEAL shaft type, which provides a leak-resistant connection well suited to high-pressure hydraulic circuits. It carries a 1-14 thread size and is built to accept an 8 mm hose size, with a 1-inch hose diameter and a 1-1/8-inch hex for wrench engagement. Hydraulic system technicians and fluid power specialists install this type of fitting during hose assembly fabrication and equipment repair.

This fitting is used in mobile hydraulic equipment, industrial machinery, and agricultural or construction equipment where hydraulic lines must change direction without sharp bends. The 45-degree swivel configuration allows the hose to be positioned after installation, making it practical in assemblies where alignment cannot be finalized until the fitting is torqued in place. It is sold and packaged as a single unit, making it appropriate for targeted repair work or single-line fabrication jobs.

Key Features

• Female ORS swivel design provides a reliable O-ring face seal connection resistant to leaks under pressure
• 45-degree elbow angle reduces hose strain and supports clean routing in confined spaces
• FOR-SEAL shaft type ensures positive sealing engagement at the hose interface
• 1-14 thread size suits common hydraulic port configurations
• 1-1/8-inch hex allows standard wrench installation without special tooling
• Steel construction offers durability in demanding hydraulic system environments

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for systems requiring a female ORS swivel 45-degree elbow with an 8 mm hose size and 1-14 thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings, and allow the system to cool if thermal hazards are present. Inspect the O-ring and sealing surfaces for damage before assembly and ensure the swivel rotates freely before torquing the fitting to the port. Follow equipment manufacturer specifications and applicable fluid power standards for final torque values and system pressure testing after installation.
