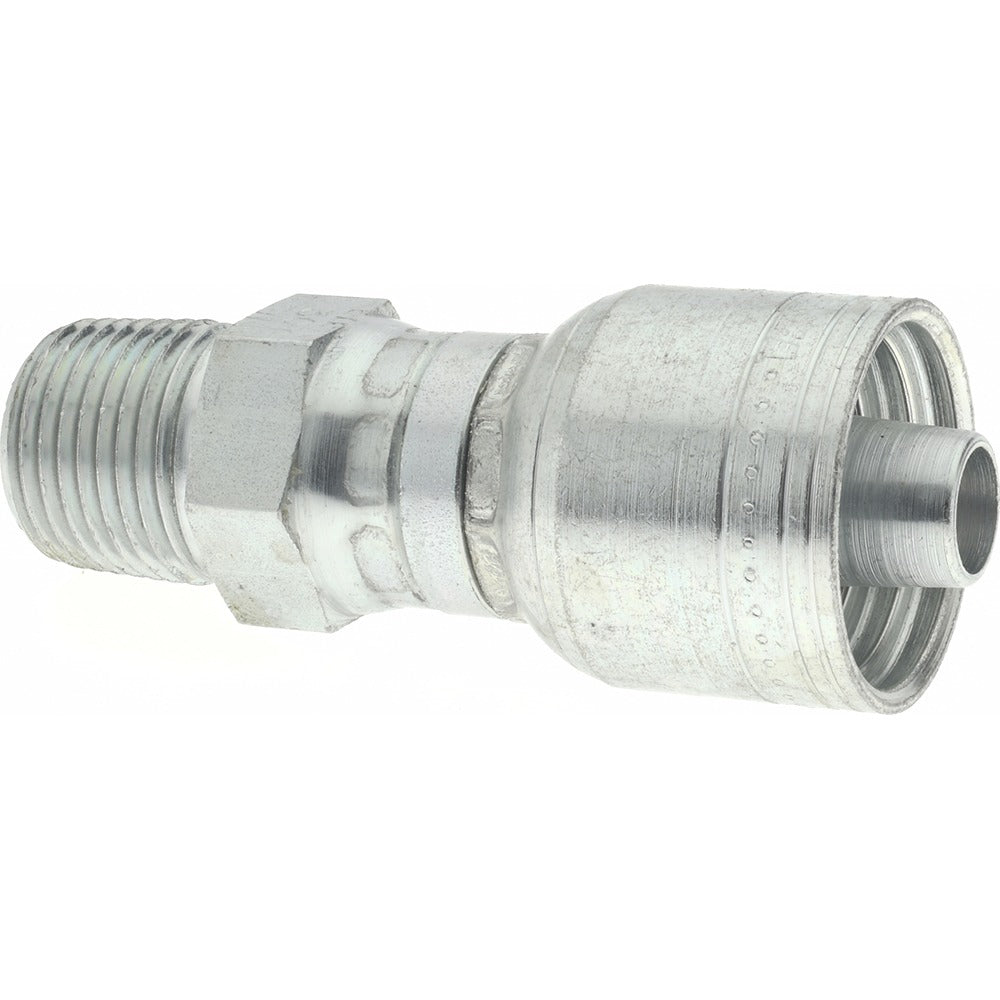

Eaton 08Z-J08-BG Male Pipe Swivel Fitting 1/2 in

Product Description

The EATON 08Z-J08-BG is a straight male pipe swivel (MPT) fitting designed for hydraulic hose assemblies. It connects hydraulic hoses to threaded ports using a 1/2-14 thread size, allowing the hose to rotate during installation without twisting the hose body. The fitting is manufactured from steel and is sized for hoses with a 0.5 inch inside diameter and 0.5 inch outside diameter, corresponding to an SAE Size 8 hose. The straight geometry suits direct in-line connections, and the 7/8 inch hex provides a standard wrench flat for torque application. Licensed hydraulic system technicians and fluid power specialists typically install this fitting in mobile equipment and industrial hydraulic circuits.

This fitting is intended for use in hydraulic hose assemblies where a male pipe swivel end connection is required at a fixed port. It is suited for mobile hydraulic equipment, industrial machinery, and fluid power systems that use SAE J1176 compliant end fittings. The swivel design simplifies hose routing during assembly and reduces stress on the hose end at installation. It is part of the EATON Z Series of hydraulic fittings.

Key Features

• Straight male pipe swivel (MPT) configuration for in-line threaded port connections
• 1/2-14 thread size with 7/8 inch hex wrench flat
• SAE Size 8 hose ID and OD at 0.5 inches each
• Steel construction for durability in hydraulic service
• Swivel body allows hose to rotate during make-up, reducing hose twist
• Meets SAE J1176 standard

Compatibility

Designed for use with the following EATON hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Use the 7/8 inch hex flat to apply wrench torque; do not grip the swivel body. Follow SAE J1176 and equipment manufacturer torque guidelines for the thread size and material combination.
