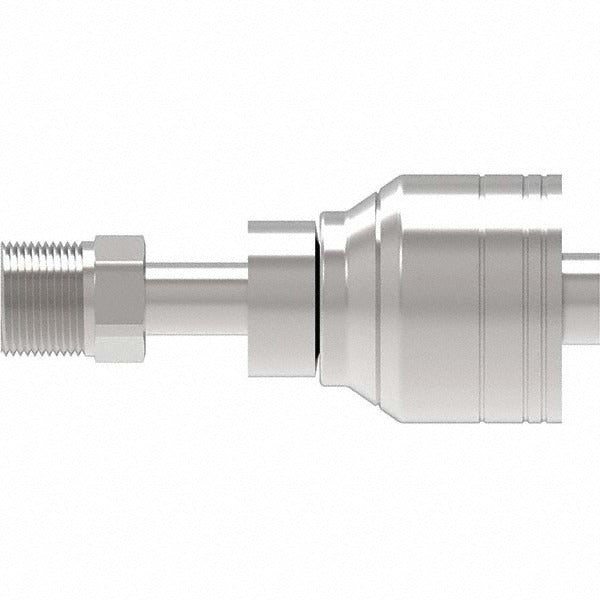

Eaton 08Z-B08-BG Hydraulic Hose Swivel Straight Fitting

Product Description

The EATON 08Z-B08-BG is a hydraulic hose inverted male swivel straight fitting designed for use in hydraulic fluid conveyance systems. Machined from steel, this fitting accepts an 8 mm hose size and features a 3/4-18 thread size with a male pipe thread (MPT) shaft type. The swivel design allows the hose end to rotate during installation, reducing torsional stress on the hose assembly. Licensed hydraulic system technicians and heavy equipment service professionals install this type of fitting when assembling or repairing high-pressure hydraulic lines.

This fitting is suited for mobile hydraulic applications including agricultural equipment, construction machinery, and industrial hydraulic systems where a straight inverted male swivel connection is required. It is used at the hose-to-component interface to maintain a secure, leak-resistant hydraulic circuit. The steel construction makes it appropriate for systems operating under sustained hydraulic pressure. Sold individually, it is a direct replacement component for worn or damaged fittings in existing hydraulic hose assemblies.

Key Features

• Inverted male swivel straight configuration reduces hose twist during assembly
• Steel construction for durability in high-pressure hydraulic service
• 3/4-18 thread size with MPT shaft type for standard hydraulic circuit connections
• Compatible with 8 mm hose size and 3/4 inch hose diameter
• 3/4 inch hex size for standard wrench installation
• Compact form factor at 3.35 inches in length

Compatibility

Designed as an OEM-style replacement straight swivel fitting for hydraulic hose assemblies requiring an 8 mm, 3/4-18 MPT inverted male swivel straight end connection in steel.

Installation Notes

Installation should be performed by a qualified hydraulic systems technician. Depressurize and fully relieve hydraulic system pressure before removing or installing any hydraulic fitting. Use a calibrated torque wrench sized to the 3/4 inch hex; do not over-torque, as steel fittings in hydraulic circuits are subject to thread damage from excess force. Inspect the mating port and hose ferrule for wear or damage before final assembly, and verify a leak-free connection before returning the system to service.
