Eaton 08Z-A28-BG Hydraulic Hose Fitting 90 Elbow

Product Description

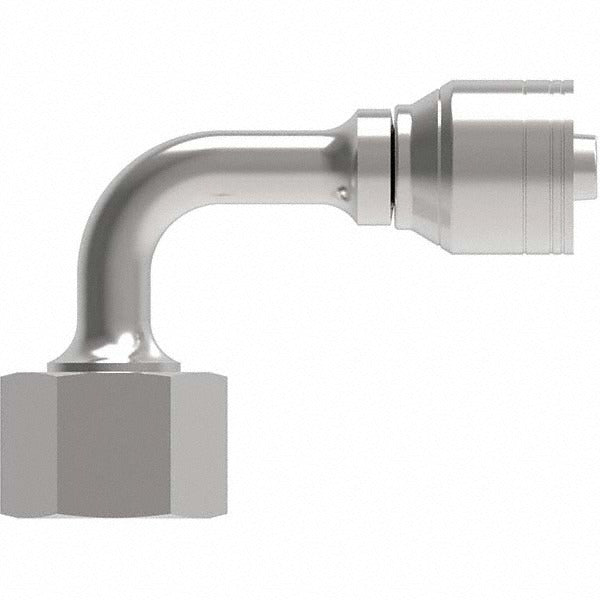

The EATON 08Z-A28-BG is a female ORS swivel short drop 90-degree elbow fitting designed for hydraulic hose assemblies. Manufactured from steel with a FOR-SEAL shaft type, this fitting connects hydraulic hose to system ports where a right-angle transition is required in tight or angled routing conditions. It features a 13/16-16 inch threaded connection and accepts hose with a 0.5 inch inside diameter and 0.5 inch outside diameter. The overall installed length is 2.84 inches. This is a threaded, swivel-style fitting, allowing the hose to be positioned without twisting during assembly. Licensed hydraulic technicians and fluid power specialists are the primary installers of this component.

This fitting is suited for hydraulic system plumbing in mobile, industrial, and off-highway equipment applications where a 90-degree elbow with a short drop profile is needed to manage hose routing. The ORS (O-Ring Face Seal) swivel design provides a leak-resistant connection commonly used in medium- to high-pressure hydraulic circuits. It is sized for SAE hose size 8 and belongs to EATON Series Z fittings. This part is sold individually and is intended as a direct OEM-style replacement or new-build component for systems using compatible EATON hose assemblies.

Key Features

• Female ORS swivel design allows hose positioning without twisting during assembly
• Short drop 90-degree elbow profile supports tight-space hose routing
• FOR-SEAL shaft type for enhanced sealing reliability
• Steel construction for durability in hydraulic service environments
• 13/16-16 inch thread size compatible with SAE hose size 8 assemblies
• 2.84 inch overall length with 15/16 inch hex size for standard wrench fitment

Compatibility

Compatible with EATON hose series including EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04) as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist familiar with ORS swivel fitting assembly procedures. Always depressurize and isolate the hydraulic circuit before removing or installing any fitting. Use the correct wrench size on the 15/16 inch hex to avoid rounding the fitting body. Torque to the fitting manufacturer specification for 13/16-16 ORS connections and inspect the O-ring sealing surface for damage before assembly.
