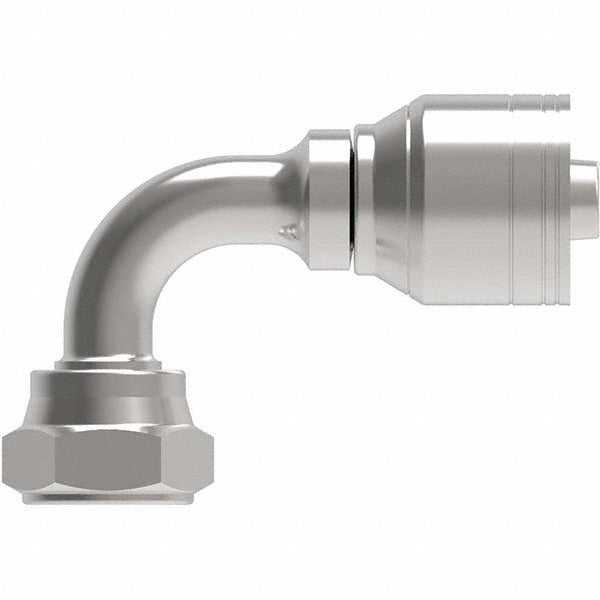

Eaton 08Z-78P-BG Bspp 60 Cone Female 90 Elbow Fitting

Product Description

The EATON 08Z-78P-BG is a hydraulic hose fitting designed in a 90-degree elbow configuration with a BSPP 60-degree cone female end. Constructed from steel, it connects hydraulic hose lines in high-pressure fluid power systems where a right-angle routing path is required. The fitting accepts an 8 mm hose size with a 1/2-inch hose diameter and threads onto a G 1/2-14 BSPP port. It weighs 0.34 pounds and measures 3.04 inches in length, 1.22 inches in width, and 2.49 inches in height. Hydraulic system technicians and fluid power specialists install this fitting during hose assembly or replacement on mobile and industrial hydraulic circuits.

This fitting is suited for hydraulic plumbing applications where a directional change is needed at the hose termination point. The 90-degree elbow profile helps route hoses around obstructions or into tight equipment envelopes without requiring the hose itself to bend sharply near the connection. It is appropriate for use in mobile equipment, industrial machinery, and any hydraulic system that utilizes BSPP ported components. The 1-1/16-inch hex allows standard wrench engagement for assembly and torquing to specification.

Key Features

• BSPP 60-degree cone female seat provides a reliable metal-to-metal seal at the fitting connection
• 90-degree elbow orientation allows right-angle hose routing in tight installations
• Steel construction for durability in high-pressure hydraulic service environments
• G 1/2-14 BSPP thread size for compatibility with standard BSPP ported components
• 1-1/16-inch hex size enables engagement with standard open-end or combination wrenches
• Compact profile: 3.04 inches long, 1.22 inches wide, 2.49 inches tall

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for fluid power systems using BSPP ported connections with an 8 mm hose size and G 1/2-14 thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and de-energize the hydraulic system fully before removing or installing any hose fitting. Use appropriate torque equipment and follow system manufacturer torque specifications for G 1/2-14 BSPP fittings. Inspect the cone seat and mating port face for damage or contamination before assembly to ensure a leak-free connection.
