Eaton 08Z-758-BG Flareless Tube Rigid Hydraulic Fitting 8mm

Product Description

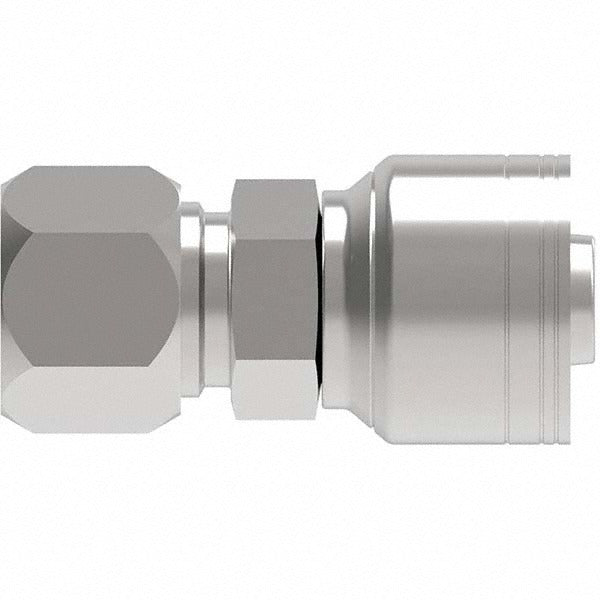

The EATON 08Z-758-BG is a flareless tube rigid Ermeto 7000 Series hydraulic fitting designed for use in high-pressure hydraulic systems. Manufactured from steel, this fitting features a 3/4-16 SAE thread size and accommodates an 8 mm hose size. The Ermeto flareless design creates a reliable, leak-resistant connection without requiring flared tubing ends, making it well suited for demanding industrial and mobile hydraulic applications. At 0.27 pounds and measuring 2.84 inches in length with a 1.22-inch width and height, it is a compact, robust component. Licensed hydraulic technicians and fluid power mechanics are the primary installers of this type of fitting.

This fitting is intended for use in rigid tube hydraulic assemblies where a secure, flareless connection is required. The 7000 Series Ermeto designation indicates compatibility with metric tube OD sizing at 8 mm, paired with a 3/4-16 UNF SAE straight thread port. Typical applications include mobile equipment hydraulic circuits, industrial machinery, and any hydraulic system requiring a dependable tube-to-port connection under elevated operating pressures up to 7,000 psi-class service levels typical of this fitting series.

Key Features

• Flareless Ermeto 7000 Series design eliminates the need for flared tube ends
• Steel construction provides strength and durability in hydraulic service environments
• 3/4-16 SAE straight thread for secure, leak-resistant port engagement
• 8 mm hose and 3/4-inch diameter compatibility for precise tube fitment
• Compact form factor: 2.84 inches long, 1.22 inches wide and tall

Compatibility

Designed as an OEM-style replacement fitting for hydraulic systems utilizing Ermeto 7000 Series flareless tube rigid connections with 8 mm metric tube OD and 3/4-16 SAE threaded ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic familiar with flareless tube fitting assembly procedures. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Follow the fitting manufacturer's recommended pre-swaging or presetting procedure for Ermeto-style flareless fittings to ensure proper tube bite and seal integrity. Do not overtighten; refer to applicable fluid power standards for thread engagement guidance.
