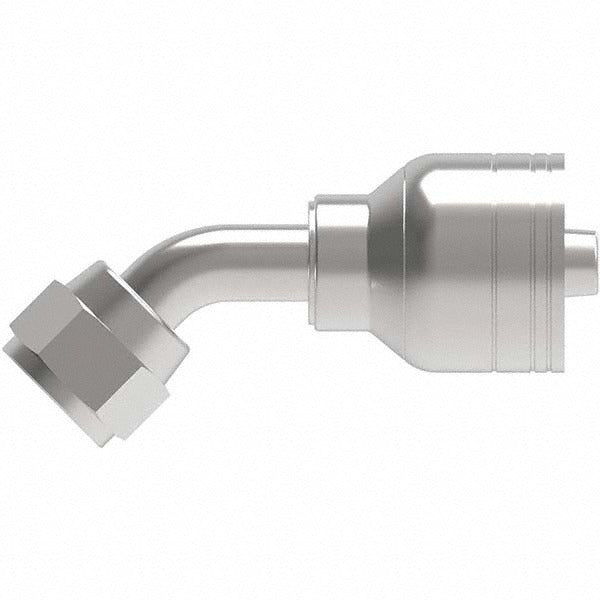

Eaton 08Z-690-BG Female Jic Swivel 45 Elbow Fitting

Product Description

The EATON 08Z-690-BG is a female JIC swivel 45-degree elbow fitting designed for hydraulic hose assemblies. It connects a hose end to a JIC 37-degree flare port at a 45-degree angle, reducing stress on the hose routing and allowing cleaner plumbing in tight installations. The fitting is machined from steel for durability under hydraulic system pressures. The swivel design lets the fitting rotate during assembly, which eliminates the need to twist the hose and simplifies makeup in confined spaces. This type of fitting is installed by hydraulic technicians, industrial mechanics, and mobile equipment service professionals.

This fitting is suited for hydraulic systems found in mobile equipment, industrial machinery, and agricultural applications where hose routing requires an angled transition. The 7/8-14 thread size and JIC 37-degree seating surface make it compatible with standard JIC female swivel plumbing configurations. It is appropriate for use in both original equipment assembly and field repair situations where a replacement elbow fitting is needed to restore or build a hydraulic hose line.

Key Features

• Female JIC swivel 45-degree elbow configuration for angled hose routing
• JIC 37-degree flare seating surface for a reliable metal-to-metal seal
• 7/8-14 thread size for standard JIC port connections
• Steel construction for hydraulic system pressure service
• Swivel body allows fitting rotation during assembly without twisting the hose
• 1-inch hex size for wrench engagement during installation

Compatibility

Designed as an OEM-style replacement JIC swivel elbow fitting for hydraulic hose assemblies using 7/8-14 JIC 37-degree flare connections on mobile or industrial hydraulic systems.

Installation Notes
