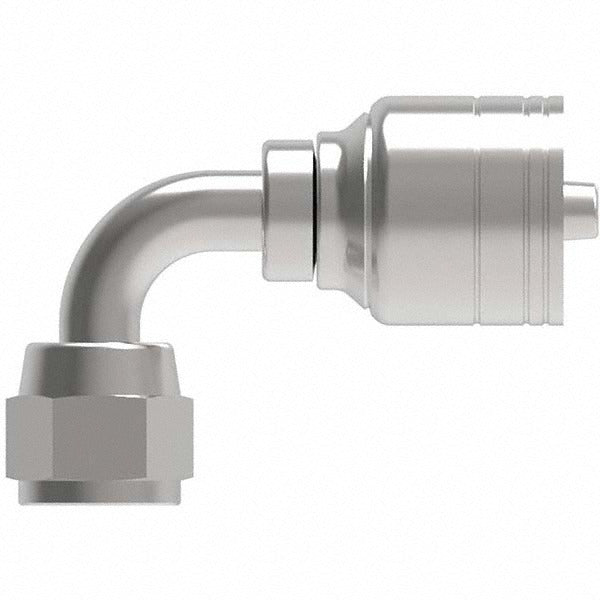

Eaton 08Z-670-BG Female Jic Swivel 90 Elbow 7/8-14

Product Description

The EATON 08Z-670-BG is a female JIC swivel 90-degree elbow hydraulic hose fitting machined from steel. It connects a hydraulic hose to a port or component at a 90-degree angle using a 37-degree JIC flare seat, allowing the hose to route away from tight spaces without bending the hose against its minimum bend radius. The 7/8-14 UNF thread and size 8 hose end make this fitting a common choice in medium-pressure hydraulic circuits. Hydraulic technicians and equipment mechanics install this type of fitting during hose assembly, system repair, or when replacing worn or leaking swivel elbows in mobile and industrial hydraulic systems.

This fitting is suited for use in hydraulic hose assemblies where a 90-degree change in hose direction is required at the connection point. The swivel design allows the hose end to rotate during installation so the hose routes cleanly without twisting. Typical applications include mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic power units where JIC 37-degree flare connections are the specified standard. The size 8 hose designation corresponds to a 7/8 inch hose inner diameter, and the 7/8-14 thread is a standard UNF pitch widely used across JIC hydraulic fittings.

Key Features

• Female JIC swivel design allows hose rotation during assembly to prevent hose twist
• 90-degree elbow routes hose away from ports in confined or angled mounting locations
• 37-degree JIC flare seat provides a reliable metal-to-metal seal
• 7/8-14 UNF thread is a widely standardized pitch for size 8 JIC hydraulic fittings
• Steel construction offers strength and durability in typical hydraulic service environments

Compatibility

Designed as an OEM-style replacement JIC swivel elbow fitting for size 8 hydraulic hose assemblies using 7/8-14 UNF thread and 37-degree JIC flare connections in mobile and industrial hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system fully before removing or installing any fittings. Inspect the JIC flare seat and mating surface for damage before assembly, and confirm thread pitch with a thread gauge if there is any uncertainty. Follow equipment manufacturer torque specifications and applicable industry standards for JIC fitting assembly.
