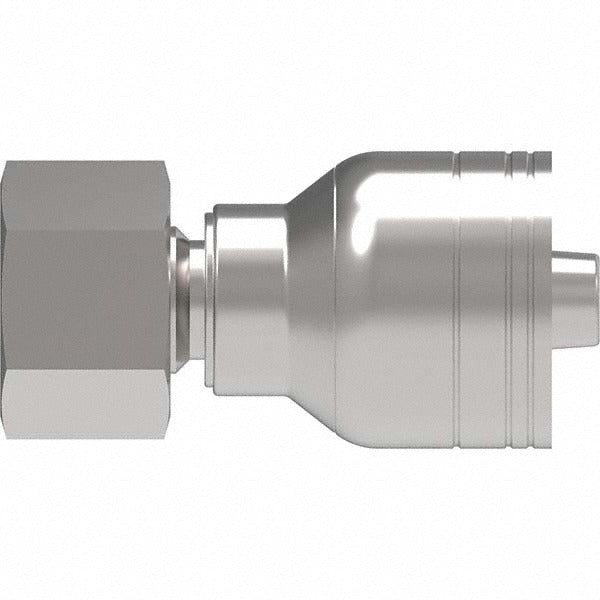

Eaton 08Z-66C-BG Female Swivel Din 24 Seat Hydraulic Fitting

Product Description

The EATON 08Z-66C-BG is a female swivel DIN 24 seat heavy hydraulic hose fitting designed for high-pressure hydraulic line connections in mobile and industrial equipment. Machined from steel, this metric fitting uses an M24 x 1.50 thread and accommodates a 5/8 inch hose diameter. The swivel design allows the hose to be positioned without twisting the assembly, reducing installation stress and potential leak points. It is installed by hydraulic technicians and equipment mechanics working on mobile machinery, agricultural equipment, construction equipment, and industrial hydraulic circuits.

This fitting is suited for metric hydraulic systems requiring a DIN 24 seat heavy-series connection. The heavy-series designation indicates thicker wall construction for higher working pressure tolerance compared to standard-series equivalents. Typical applications include connecting hydraulic hoses to valves, cylinders, and pump ports where a DIN 24 taper seat seal is specified. The 1-1/8 inch hex size accommodates standard open-end or crow-foot wrenches for installation and removal.

Key Features

• Female swivel DIN 24 seat design allows hose positioning without line twist
• Heavy-series construction for elevated working pressure applications
• Steel construction for durability in demanding hydraulic environments
• M24 x 1.50 metric thread for compatibility with DIN-spec hydraulic ports
• 5/8 inch hose diameter accommodates common hydraulic hose assemblies
• 1-1/8 inch hex size works with standard wrenches for efficient installation

Compatibility

Designed as an OEM-style replacement metric hydraulic hose fitting for systems specifying a DIN 24 seat heavy female swivel connection with an M24 x 1.50 thread and 5/8 inch hose diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed the hydraulic system fully before removing or installing any fittings. Inspect the DIN 24 seat and mating port for damage or contamination before assembly. Tighten the fitting using a properly sized open-end or crow-foot wrench on the 1-1/8 inch hex; follow system manufacturer torque guidelines for the thread size and pressure rating of the application.
