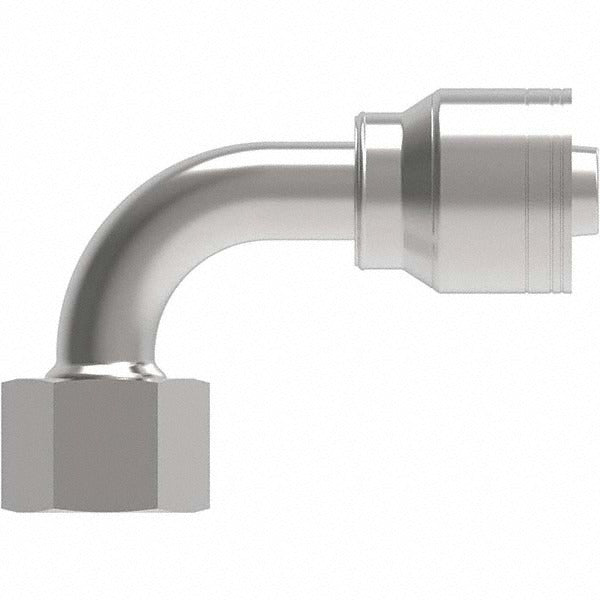

Eaton 08Z-65D-BG Hydraulic Hose Fitting Din 24 Seat 90 Deg

Product Description

The EATON 08Z-65D-BG is a female swivel hydraulic hose fitting with a DIN 24 seat and a 90-degree light-duty elbow configuration. Machined from steel, this metric fitting connects an 8 mm hose to hydraulic systems using an M22 x 1.50 thread. The swivel design allows the hose to be positioned without twisting during final assembly, reducing stress on the hose end. It is used in mobile and industrial hydraulic circuits and is installed by hydraulic technicians, fluid power mechanics, and equipment service personnel working on metric-threaded hydraulic lines.

This fitting is suited for hydraulic plumbing applications requiring a compact 90-degree elbow transition in tight routing spaces. The DIN 24 cone seat provides a reliable metal-to-metal seal consistent with metric hydraulic standards. With a hose inside diameter of 19/32 inches and a 1-1/16 inch hex, it accommodates standard wrenching during installation. Typical applications include construction equipment, agricultural machinery, and industrial hydraulic power units using metric hose and port configurations.

Key Features

• DIN 24 cone seat provides a metal-to-metal hydraulic seal in metric systems
• 90-degree light-duty elbow angle supports compact hose routing in confined spaces
• Female swivel end allows hose positioning without torquing the hose assembly
• Steel construction suited for hydraulic fluid service in industrial and mobile equipment
• M22 x 1.50 thread size matches common metric hydraulic port standards
• 1-1/16 inch hex size accommodates standard open-end or combination wrenches

Compatibility

Designed as an OEM-style replacement metric hydraulic hose fitting for systems using 8 mm hose ends with DIN 24 seat ports and M22 x 1.50 female swivel connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and bleed down the hydraulic system fully before removing or installing any fittings. Apply appropriate thread sealant or ensure the DIN 24 cone seat surfaces are clean and undamaged before torquing. Do not over-torque the swivel nut, as damage to the cone seat will compromise the seal.
