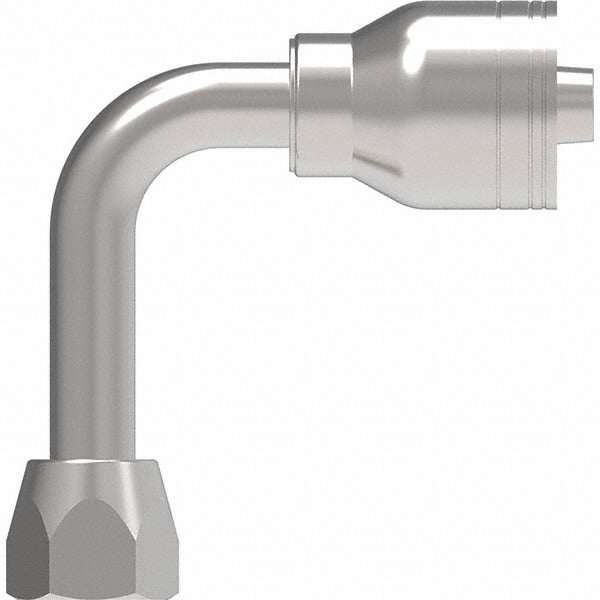

Eaton 08Z-648-BG Hydraulic Hose Jic Swivel 90 Elbow

Product Description

The EATON 08Z-648-BG is a long drop female JIC swivel 90-degree elbow fitting designed for use with hydraulic hose assemblies. Built from steel and conforming to SAE J1176, this Series Z fitting connects via a 3/4-16 threaded JIC 37 interface. The 90-degree elbow geometry directs hose routing away from tight mounting surfaces, reducing bend strain at the hose end. With a 0.5-inch inside diameter and an overall length of 2.71 inches, it suits compact hydraulic plumbing runs where straight fittings would create interference. Installation is performed by qualified hydraulic technicians working on mobile, industrial, or stationary hydraulic systems.

This fitting is suited for hydraulic hose assemblies in mobile equipment, industrial machinery, and fluid power systems requiring a low-profile directional change at the connection point. The swivel feature allows the hose to be positioned without twisting the hose body during assembly. Compatible hose families and series are listed below based on manufacturer data. The 7/8-inch hex size accommodates standard open-end or combination wrenches for assembly and service.

Key Features

• Long drop female JIC swivel 90-degree elbow design for directional hose routing
• JIC 37-degree flare connection type for leak-resistant sealing under hydraulic pressure
• Steel construction for durability in demanding hydraulic environments
• Conforms to SAE J1176 standard
• Swivel end allows hose positioning without twisting the hose body
• 7/8-inch hex size compatible with standard wrench tooling

Compatibility

Per manufacturer data, this fitting is designed for use with the following hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician. Always depressurize and bleed down the hydraulic system before removing or installing any fittings. Torque the fitting to the assembly specification listed in the applicable equipment service manual using the correct wrench on the hex flats — do not use the fitting body as a torque point. Inspect the JIC 37-degree flare seat for nicks or contamination before assembly to ensure a proper seal.
