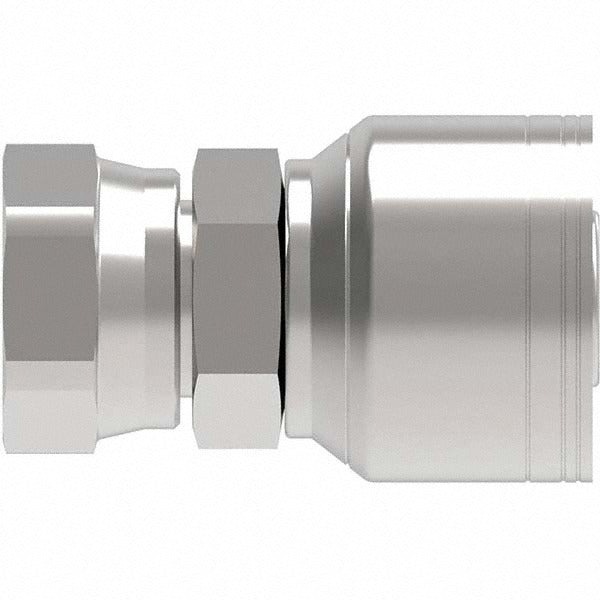

Eaton 08Z-616-BG Female Jic 37 Swivel Hose Fitting

Product Description

The EATON 08Z-616-BG is a female JIC 37-degree swivel fitting designed for hydraulic hose assemblies. It accepts a size 8 hose with a 15/16-inch hose diameter and connects via a 1-5/16-12 threaded end. The swivel design allows the hose end to rotate during assembly, reducing torque transfer and making final connection significantly easier in tight or confined plumbing runs. Constructed from steel, this fitting delivers the durability and pressure resistance required in demanding hydraulic systems. It is a direct-assembly component installed by hydraulic system technicians and equipment mechanics.

This fitting is suited for use in mobile equipment, industrial machinery, and stationary hydraulic systems where JIC 37-degree flare connections are specified. The female swivel end mates with male JIC 37-degree flare fittings on valves, manifolds, cylinders, and other hydraulic components. It is commonly used in agricultural, construction, and manufacturing equipment hydraulic plumbing applications where reliable leak-free connections are required.

Key Features

• JIC 37-degree flare swivel design allows hose rotation during final assembly
• Hose size 8 with 15/16-inch hose diameter for compatibility with standard size 8 hydraulic hose
• 1-5/16-12 thread size for mating with male JIC 37-degree flare ports
• Steel construction for pressure resistance and durability in hydraulic service
• 1-1/2-inch and 1-1/4-inch hex sizes accommodate standard wrenches for assembly

Compatibility

Designed as an OEM-style hydraulic hose end fitting for use with size 8 hydraulic hose assemblies requiring a female JIC 37-degree swivel connection with a 1-5/16-12 thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fittings. Use two wrenches when tightening swivel fittings to prevent hose twist and avoid over-tightening, which can damage the JIC flare seat. Inspect the mating male flare for nicks or damage before assembly to ensure a leak-free connection.
