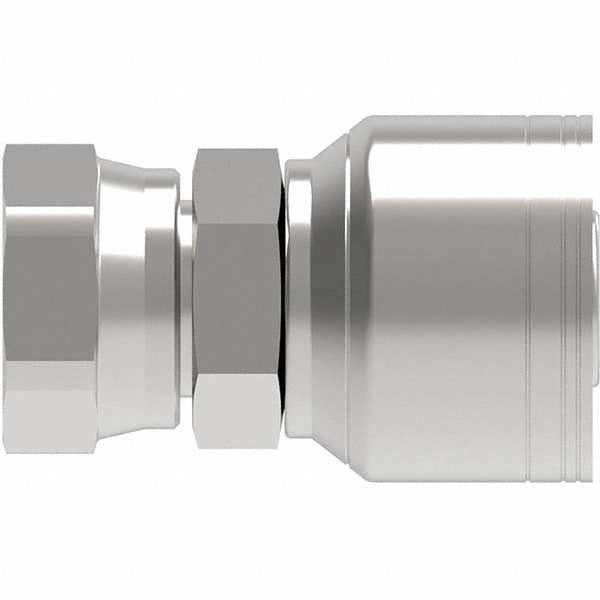

Eaton 08Z-612-BG Female Jic 37 Swivel Fitting Steel

Product Description

The EATON 08Z-612-BG is a female JIC 37-degree swivel fitting designed for use in hydraulic hose assemblies. It connects an 8 mm hose to a 1-1/16-12 threaded port using the industry-standard JIC 37-degree flare seat. The swivel design allows the hose to be oriented during assembly without twisting, which reduces installation stress and improves line routing flexibility. Constructed from steel, this fitting provides the strength required for demanding hydraulic circuits. It is a single-piece, sold-per-unit fitting intended for professional hydraulic system assembly and repair work.

This fitting is used in mobile equipment, industrial machinery, and fluid power systems wherever a JIC 37-degree female swivel connection is required. The 11/16-inch hose diameter and 1-1/16-12 thread size are common in mid-range hydraulic circuits found in agricultural equipment, construction machinery, and material handling systems. Installation is performed by licensed or trained hydraulic technicians during hose assembly or port-to-hose connections at hydraulic manifolds, cylinders, pumps, and valves.

Key Features

• JIC 37-degree flare seat provides a leak-resistant metal-to-metal seal at the port connection
• Swivel design prevents hose twist during assembly and allows post-installation orientation adjustment
• Steel construction rated for the pressure demands of standard hydraulic circuits
• 1-1/16-12 thread size accommodates common SAE hydraulic port sizes
• Compatible with 8 mm hose size with an 11/16-inch hose diameter
• Single-piece unit sold individually with no minimum order beyond one

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic hose assemblies requiring a female JIC 37-degree swivel end with 1-1/16-12 thread and an 8 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed the hydraulic system fully before disconnecting or connecting any fittings. Clean all mating surfaces and inspect the JIC flare seat for damage before assembly. Do not use thread sealant on JIC 37-degree flare fittings, as the metal-to-metal flare seat provides the seal.
