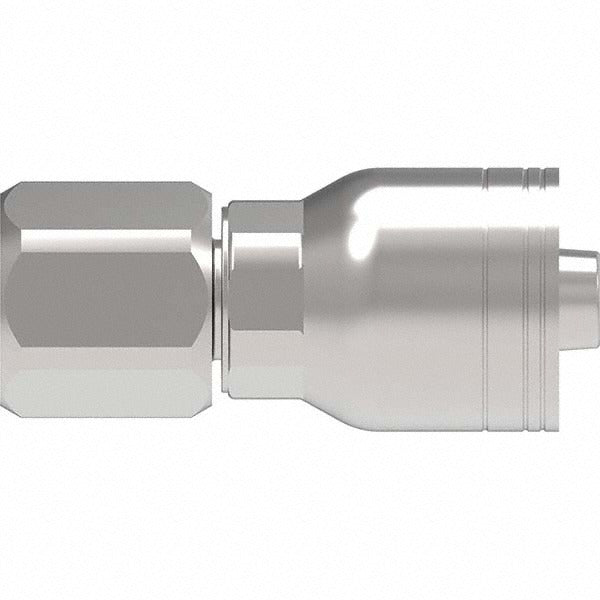

Eaton 08Z-610-BG Female Jic 37 Swivel Fitting 0.5 in Id

Product Description

The EATON 08Z-610-BG is a female JIC 37-degree swivel fitting designed for hydraulic hose assemblies in demanding fluid-power applications. Built from steel, this straight-body fitting accepts hose with a 0.5-inch inside diameter and a 0.625-inch outside diameter, threading onto a 7/8-14 port. The overall installed length is 2.64 inches, and the fitting weighs 0.25 pounds. The swivel design allows the hose end to rotate freely during installation, reducing assembly torque and helping prevent hose twist. It is installed by hydraulic technicians and fluid-power mechanics in industrial and mobile equipment environments.

This fitting is used in hydraulic hose assemblies where a JIC 37-degree flare connection is required at the female swivel end. It is suited for both stationary industrial systems and mobile equipment where vibration and routing demands make a swivel-style termination preferable to a fixed fitting. The 7/8-14 thread size is a common port specification in mid-size hydraulic circuits. Compatible hose sizes fall within the 8 mm nominal designation, matching hoses with 0.5-inch ID and 0.625-inch OD.

Key Features

• Female JIC 37-degree swivel design allows free rotation during assembly to prevent hose twist
• Steel construction for durability in high-pressure hydraulic service
• Straight body shape for direct in-line hose-to-port connections
• 7/8-14 threaded connection conforms to SAE J1176
• Overall length of 2.64 inches fits tight routing envelopes
• Nominal hose size 8 mm covers 0.5-inch ID hose assemblies

Compatibility

Designed for use with the following EATON hose series and assemblies: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system fully before removing any existing fittings or hose assemblies. The swivel nut should be threaded by hand until snug before applying a wrench to avoid cross-threading the 7/8-14 port. Inspect the JIC 37-degree flare seat on both the fitting and the mating port for nicks or debris before final assembly.
