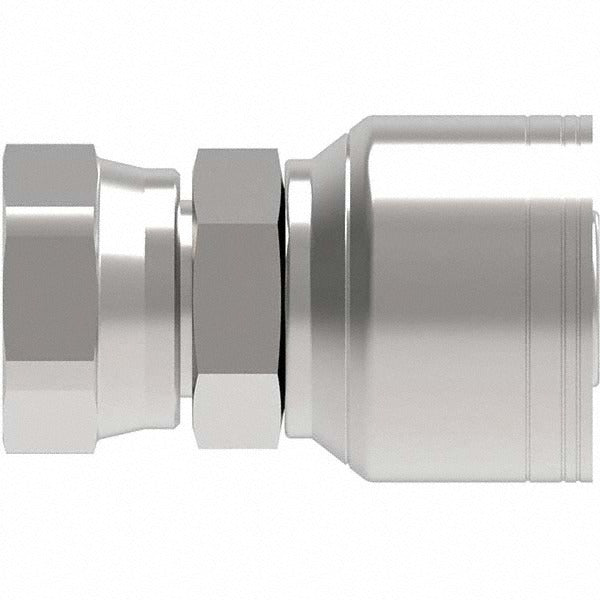

Eaton 08Z-608-BG Female Jic 37 Swivel Fitting 0.5 in Steel

Product Description

The EATON 08Z-608-BG is a female JIC 37-degree swivel fitting designed for use with hydraulic hose assemblies in fluid power systems. Manufactured from steel, this straight threaded fitting features a 0.5-inch hose inside diameter, a 3/4-16 inch thread size, and an overall length of 2.63 inches. The swivel design allows rotation during installation, reducing hose twist and making it easier to achieve proper alignment in tight or awkward plumbing runs. It is sized as a hose size 8 fitting and conforms to SAE J1176, making it a standard-compliant choice for hydraulic circuit assembly and maintenance work performed by hydraulic technicians and industrial maintenance professionals.

This fitting is suited for hydraulic hose installations in industrial, mobile, and fluid power applications where a JIC 37-degree female swivel connection is required. The straight body style fits inline plumbing configurations. It is compatible with a range of Eaton hose series, making it a practical replacement or new-assembly component for technicians working on hydraulic power units, mobile equipment, and fluid transfer systems.

Key Features

• Female JIC 37-degree swivel design reduces hose twist during assembly
• Steel construction for durability in hydraulic fluid environments
• Straight body style suits inline plumbing configurations
• 3/4-16 inch thread size with 0.5-inch hose inside diameter
• Conforms to SAE J1176 standard
• Hose size 8 designation for straightforward cross-referencing

Compatibility

For use with Eaton hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic. Depressurize and bleed the hydraulic system fully before removing or installing any fittings. Use appropriate wrenches on the hex flats — do not grip the swivel body — and follow SAE J1176 guidelines for thread engagement and sealing. Inspect mating threads and sealing surfaces for damage before assembly.
