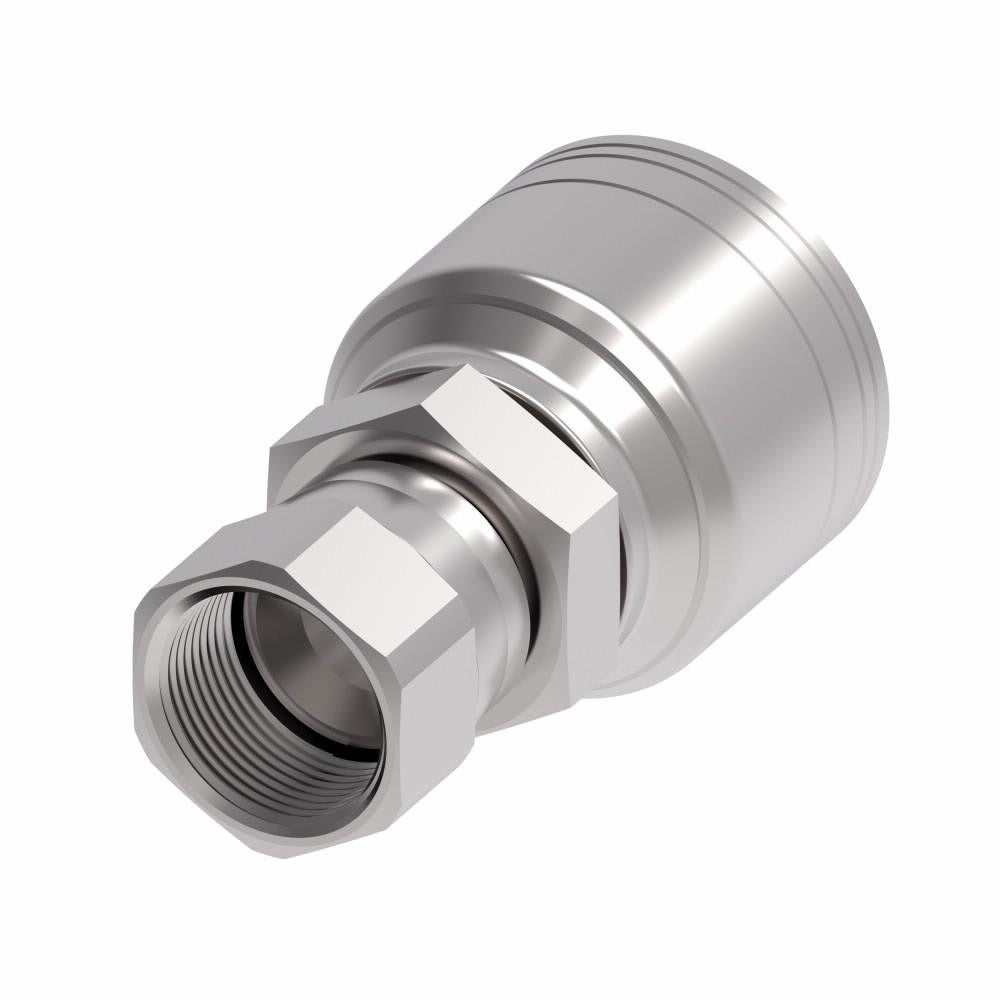

Eaton 08Z-606 Hydraulic Hose Female Swivel Fitting

Product Description

The EATON 08Z-606 is a straight female swivel fitting designed for hydraulic hose assemblies. It provides a threaded, swivel-type connection that allows the hose to rotate during installation without twisting, reducing assembly stress and improving seal integrity. Built from steel and rated to SAE J1176 standards, this fitting accepts a 1/2-inch (8 mm) hose inside diameter and uses a 9/16-18 thread. The 13/16-inch hex size accommodates standard open-end or crow-foot wrenches. It is installed by hydraulic system technicians and fluid power specialists working on mobile, industrial, and OEM equipment applications.

This fitting is used in hydraulic plumbing where a secure, leak-resistant female swivel connection is required at a hose end. The straight configuration suits inline routing where a 90-degree or elbow adapter is not needed. It is compatible with a range of EATON hose series commonly found in mobile equipment, construction machinery, and industrial hydraulic circuits. The SAE standard threading ensures interchangeability with other SAE-compliant hydraulic components on the same circuit.

Key Features

• Female swivel design allows hose rotation during makeup, preventing assembly twist
• Straight shape for direct inline hose-to-port connections
• 9/16-18 SAE thread for compatibility with SAE J1176-rated systems
• Steel construction for durability in high-pressure hydraulic environments
• 13/16-inch hex for easy torquing with standard hand tools
• Part of the EATON Z Series fitting line

Compatibility

Compatible with the following EATON hose series and part numbers as specified by the manufacturer: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed down the hydraulic system fully before disconnecting or replacing any fitting. Inspect the mating port threads and sealing surface for damage before installation. Follow SAE J1176 torque guidelines and use appropriate thread sealant or O-ring face seal practices as required by the system design.
