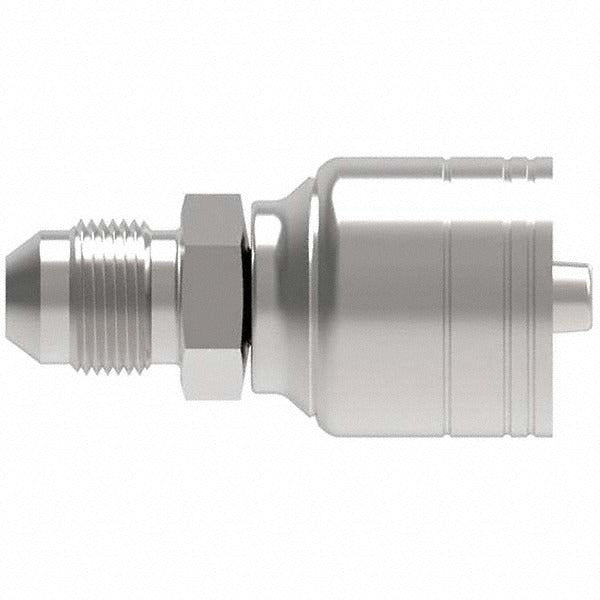

Eaton 08Z-510-BG Male Sae 37 Jic Rigid Hose Fitting

Product Description

The EATON 08Z-510-BG is a male SAE 37-degree JIC rigid hydraulic hose fitting machined from steel. It connects hydraulic hose assemblies to mating female JIC ports in fluid power systems where a permanent, non-swivel termination is required. The fitting uses a 7/8-14 UNF thread and is sized for an 8 mm hose with a 7/8-inch hose diameter. The 15/16-inch hex allows standard wrench engagement during assembly. Licensed hydraulic system technicians and fluid power specialists install this type of fitting in mobile equipment, industrial machinery, and related hydraulic circuits.

This fitting is suited for hydraulic hose assemblies operating in systems that require SAE 37-degree flare sealing. The rigid design means the fitting does not rotate after assembly, making it appropriate for applications where hose orientation is fixed at installation. Typical install scenarios include agricultural equipment, construction machinery, and industrial hydraulic power units where steel fittings are specified for durability under pressure cycling.

Key Features

• SAE 37-degree JIC flare seating provides a reliable metal-to-metal seal
• Rigid (non-swivel) male configuration for fixed-orientation hose terminations
• Steel construction for strength under hydraulic pressure cycling
• 7/8-14 UNF thread size for compatibility with standard JIC female ports
• 15/16-inch hex for engagement with standard open-end or combination wrenches
• Sized for 8 mm hose with 7/8-inch hose diameter

Compatibility

Designed as an OEM-style replacement rigid male JIC fitting for hydraulic hose assemblies requiring an SAE 37-degree flare connection with a 7/8-14 UNF thread and 8 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before disconnecting or installing any hose fitting. Inspect mating female JIC seats for damage or contamination before assembly, and do not use thread sealant on JIC 37-degree flare connections, as the flare provides the seal. Follow applicable industry standards for hydraulic hose assembly torque and routing practices.
