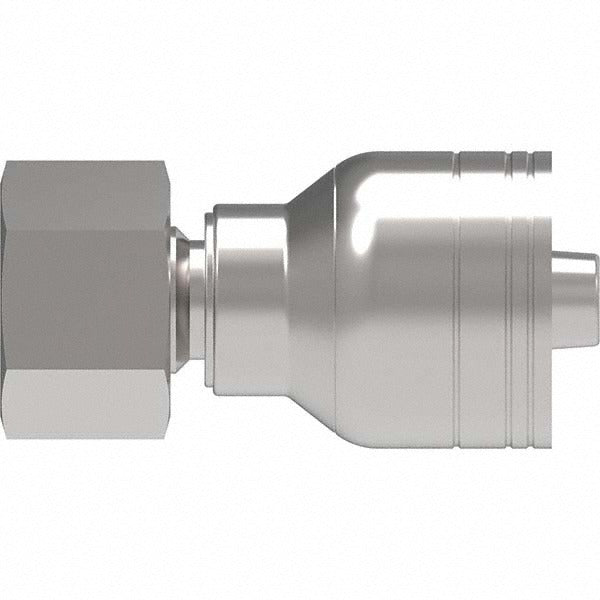

Eaton 08Z-15C-BG Female Swivel Din 24 Seat Hose Fitting

Product Description

The EATON 08Z-15C-BG is a female swivel DIN 24 seat light hydraulic hose fitting designed for metric hydraulic systems. It connects an 8 mm hose to a corresponding port using an M22 x 1.50 thread, providing a leak-resistant metal-to-metal seat interface. The fitting is manufactured from steel for durability under standard hydraulic system pressures. Its swivel design allows the hose to be positioned without twisting the assembly during final connection. Hydraulic technicians and fluid power mechanics install this fitting during hose assembly fabrication or field replacement on mobile and industrial hydraulic circuits.

This fitting is suited for light-duty hydraulic hose assemblies requiring a DIN 24 degree cone seat interface. The metric thread standard makes it appropriate for European-spec equipment, imported mobile machinery, agricultural equipment, and industrial hydraulic circuits that use M22 x 1.50 port connections. The female swivel configuration allows rotational alignment without stressing the hose during installation. It is sold individually and intended for single-hose assembly or direct replacement service.

Key Features

• Female swivel DIN 24 seat design provides a metal-to-metal cone seal for a leak-resistant connection
• M22 x 1.50 metric thread size suits European and imported equipment port standards
• Compatible with 8 mm (19/32 inch) hydraulic hose diameter
• Steel construction delivers strength and resistance to hydraulic system pressures
• Swivel body allows hose routing adjustment without twisting the hose during assembly
• 1-1/16 inch hex size for standard open-end or crowfoot wrench installation

Compatibility

Designed as an OEM-style replacement fitting for metric hydraulic hose assemblies using DIN 24 degree cone seat light-series connections with an M22 x 1.50 thread and 8 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before disconnecting any hose or fitting. Use a properly sized open-end wrench on the 1-1/16 inch hex to torque the fitting against the port seat. Inspect the cone seat and mating port surface for damage or contamination before assembly to ensure a proper seal.
