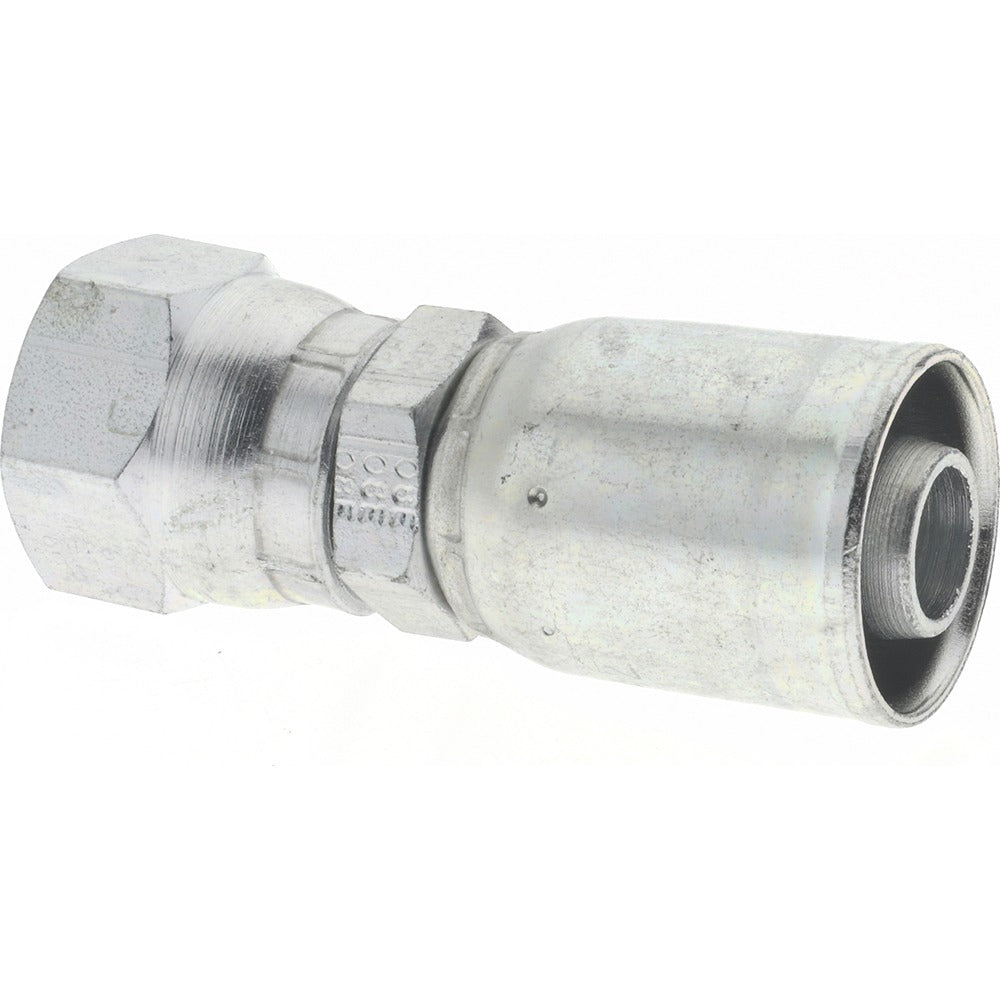

Eaton 08E-608 Hydraulic Female Swivel Fitting 4000 Psi

Product Description

The EATON 08E-608 is a straight female swivel fitting designed for hydraulic hose assemblies in high-pressure fluid power systems. Built from steel and conforming to SAE standards, this fitting accepts a 1/2-inch (8 mm) hose and connects via a 3/4-16 threaded interface. It is rated for a maximum working pressure of 4000 psi, making it suitable for demanding hydraulic circuits. The swivel design allows the hose end to rotate during installation, reducing assembly torque and preventing hose twist. Hydraulic system technicians and fluid power specialists install this fitting in industrial, mobile, and construction equipment applications.

This fitting is used in hydraulic hose assemblies where a female swivel termination is required at a port or component interface. The straight body geometry suits installations where a direct inline connection is appropriate. It is part of EATON Series E and is compatible with specific EATON hose series as listed in the compatibility section. Typical applications include mobile equipment, agricultural machinery, and industrial hydraulic power units where SAE-threaded ports and 1/2-inch hose are standard.

Key Features

• Female swivel design allows hose rotation during installation to prevent twist
• Rated to 4000 psi maximum working pressure for high-pressure hydraulic service
• 3/4-16 SAE threaded connection for broad port compatibility
• Straight body shape for direct inline hose-to-port routing
• Steel construction for durability in industrial and mobile equipment environments
• 3/4-inch hex size for standard wrench installation

Compatibility

Designed for use with EATON hose series H009, H209, H243, H265, H275, H277, H285, H435, and H436 with a 1/2-inch hose inside diameter.

Installation Notes

Installation should be performed by a qualified hydraulic system technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before disassembling any hose or fitting. Use an appropriately sized open-end or combination wrench on the 3/4-inch hex to torque the fitting to the port; do not use pipe wrenches that may damage the fitting body. Verify hose compatibility and pressure rating before returning the system to service.
