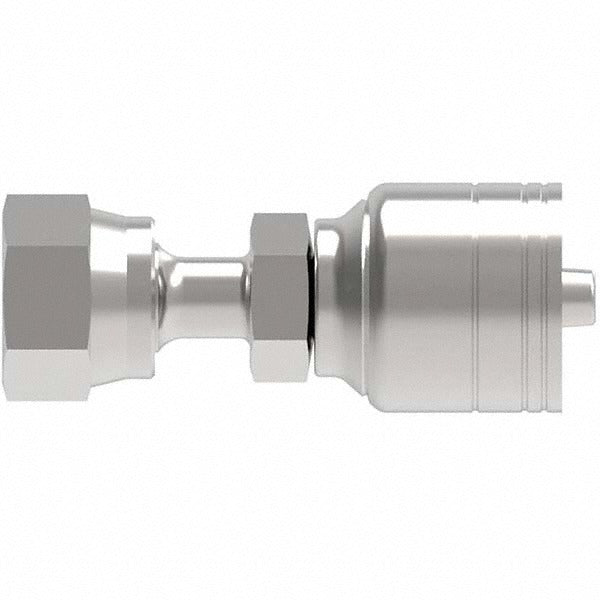

Eaton 06Z-S66-BG Hydraulic Hose Swivel Fitting 0.375 in

Product Description

The EATON 06Z-S66-BG is a straight female ORS swivel fitting designed for hydraulic hose assemblies. It connects hydraulic hose to ports and components using a threaded, FOR-SEAL interface that provides a leak-resistant seal at the O-ring face seal seat. The fitting is machined from steel for durability under hydraulic system pressure. It accepts hose with a 0.375 inch inside diameter and a 0.375 inch outside diameter, corresponding to a size 6 hose designation. The thread size is 11/16-16 inch. Overall length is 2.23 inches. Licensed hydraulic system technicians and fluid power specialists install this fitting in mobile and industrial hydraulic circuits.

This fitting is suited for use in hydraulic hose assemblies where a straight female ORS swivel end connection is required. The swivel design allows the hose to be positioned during installation without twisting the hose body. It is commonly installed in mobile equipment, agricultural machinery, and industrial hydraulic systems that use size 6 hose. Compatible hose series listed by the manufacturer include EC110, EC115, EC118, EC210, EC215, H0105, H0106, H104, H115, H116, H145, H145R, H1571, H1776, H1777, H1812, H190, H190H, and H1981, with specific dash size restrictions noted per series.

Key Features

• Straight female ORS swivel configuration for in-line hose-to-port connections
• FOR-SEAL shaft type provides O-ring face seal interface for reliable leak resistance
• Threaded connection type, 11/16-16 inch thread size
• Steel construction for hydraulic system pressure and wear resistance
• Size 6 hose designation, 0.375 inch ID and 0.375 inch OD
• Meets SAE J1176 standard

Compatibility

For use with EATON hose series EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04) as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system specialist. Relieve all hydraulic system pressure and depressurize the circuit before removing or installing any fittings. Use the appropriate crowfoot or open-end wrench on the swivel nut; do not use pliers or pipe wrenches on the fitting body. Verify hose dash size compatibility with the applicable series restrictions before assembly.
