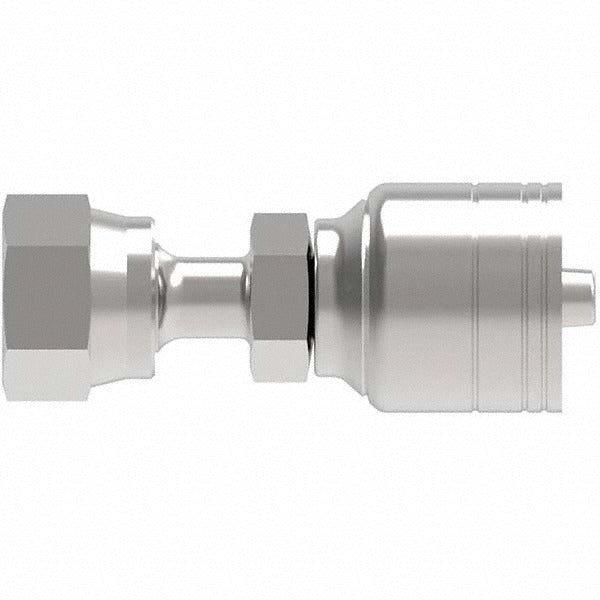

Eaton 06Z-S64-BG Female Ors Swivel Fitting 6mm Steel

Product Description

The EATON 06Z-S64-BG is a female ORS swivel fitting designed for hydraulic hose assemblies. It connects a 6 mm hose to a 9/16-18 threaded port using an O-ring face seal (ORS) interface, which provides a leak-resistant metal-to-metal seat backed by an O-ring. The FOR-SEAL shaft type is compatible with standard ORS port configurations. Constructed from steel for durability under hydraulic system pressures. This fitting is installed by hydraulic technicians and industrial maintenance professionals during hose assembly fabrication or field repair work.

This fitting is suited for mobile hydraulic equipment, industrial machinery, and fluid power systems that use ORS-style ported connections. The swivel design allows the hose to be positioned without twisting during final tightening, reducing assembly stress. It is appropriate for both new hose builds and replacement of worn or damaged fittings in existing hydraulic circuits.

Key Features

• Female ORS swivel interface provides a leak-resistant O-ring face seal connection
• FOR-SEAL shaft type for standard ORS port compatibility
• Swivel body allows hose orientation adjustment without twisting the hose
• 9/16-18 thread size for precise port engagement
• Steel construction for strength in hydraulic service environments
• 11/16 inch hex size for standard wrench installation

Compatibility

Designed as an OEM-style replacement swivel fitting for hydraulic hose assemblies using 6 mm hose diameter and 9/16-18 ORS threaded port connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Clean port faces and inspect O-ring condition before assembly. Tighten to the fitting manufacturer's recommended procedure for ORS connections using a properly sized open-end or crowfoot wrench on the 11/16 inch hex.
