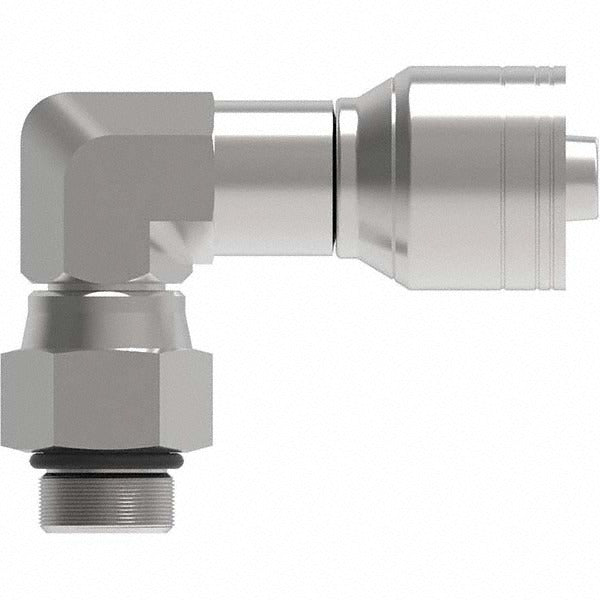

Eaton 06Z-R68-BG O-ring Boss Swivel 90 Elbow 6mm 3/4-16

Product Description

The EATON 06Z-R68-BG is a steel hydraulic hose fitting designed as an O-Ring Boss (ORB) swivel 90-degree elbow. It accepts a 6 mm hose connection on one end and threads into a 3/4-16 UNF O-Ring Boss port on the other. The swivel design allows the hose to be positioned after installation without twisting the line, reducing strain on the assembly. This fitting is used in hydraulic systems on mobile equipment, industrial machinery, and agricultural applications. Licensed hydraulic technicians and fluid power mechanics are the typical installers.

This fitting is suited for hydraulic plumbing runs where a 90-degree direction change is required at a 3/4-16 UNF ORB port. The swivel end allows final hose routing adjustment after the fitting body is torqued into the port, which is particularly useful in tight equipment cabinets or frame-rail installations. Steel construction supports use in high-pressure hydraulic circuits common in mobile and stationary industrial equipment.

Key Features

• O-Ring Boss swivel 90-degree elbow configuration for clean, leak-resistant port connections
• 3/4-16 UNF thread size fits standard ORB ports on pumps, valves, and manifolds
• Swivel hose end allows hose positioning after body is seated and torqued
• Steel construction for durability in high-pressure hydraulic service
• Compact geometry: 2.83 inches length, 2.46 inches height, 1.07 inches width

Compatibility

Designed as an OEM-style replacement fitting for hydraulic systems using 6 mm hose connections and 3/4-16 UNF O-Ring Boss ports on mobile, agricultural, and industrial equipment.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and drain the hydraulic circuit completely before removing or installing any fittings. Lubricate the O-ring lightly with clean hydraulic fluid before seating the fitting into the port. Do not over-torque the swivel nut, as deforming the O-ring seat will cause leaks; consult the equipment manufacturer or EATON fitting torque guidelines for the correct value.
