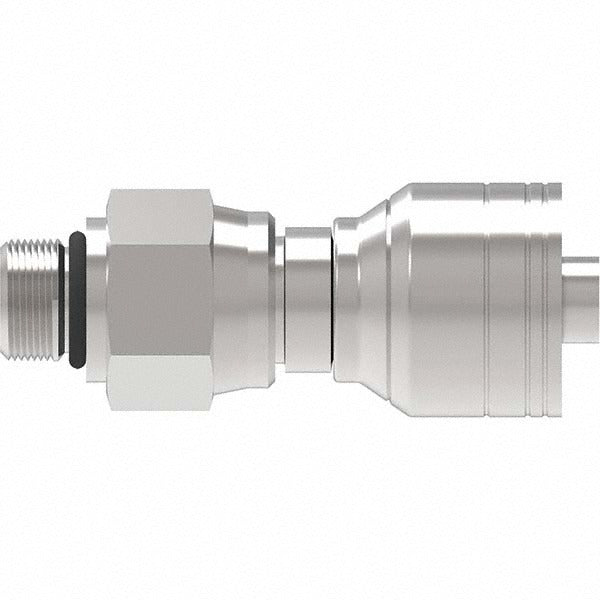

Eaton 06Z-R08-BG Hydraulic Hose Swivel Fitting 3/4-16 Unf

Product Description

The EATON 06Z-R08-BG is a male straight thread O-ring swivel fitting designed for hydraulic hose assemblies. It features a 3/4-16 UNF thread size and accommodates a 6 mm hose size, making it a compact, reliable connection point in hydraulic circuits. Constructed from steel, this fitting delivers the durability required in demanding fluid power applications. The O-ring face seal design reduces the risk of leakage at the connection interface, while the swivel configuration allows for easier hose routing and alignment during assembly. Licensed hydraulic or fluid power technicians typically install this fitting in mobile equipment and industrial hydraulic systems.

This fitting is suited for use in hydraulic hose assemblies where a male straight thread O-ring swivel connection is required. The 3/4-16 UNF thread pattern is common in a wide range of mobile and stationary hydraulic equipment. With a hex size of 7/8 inch and an overall length of 2.66 inches, it fits into tight plumbing configurations without requiring special tooling beyond a standard open-end or combination wrench. It is packaged individually and is appropriate for single-fitting replacement or new assembly work.

Key Features

• Male straight thread O-ring swivel design reduces leakage risk at the connection interface
• 3/4-16 UNF thread size for compatibility with standard hydraulic circuit ports
• Steel construction for strength and durability in high-pressure hydraulic environments
• Swivel body allows hose positioning and routing flexibility during installation
• Compact profile: 2.66 inches length, 1.07 inches width and height, 0.24 pounds
• 7/8 inch hex size for installation with standard hand tools

Compatibility

Designed as an OEM-style replacement or new-assembly hydraulic hose swivel fitting for systems using 3/4-16 UNF straight thread O-ring ports with a 6 mm hose size.

Installation Notes

Depressurize and bleed the hydraulic system completely before removing or installing any hydraulic fittings. Inspect the O-ring for damage before assembly and replace it if there are any signs of cuts or deformation. Use a calibrated torque wrench and follow the equipment manufacturer's torque specifications for the thread size. Hydraulic hose assembly and system plumbing should be performed by a qualified fluid power technician in accordance with applicable safety standards.
