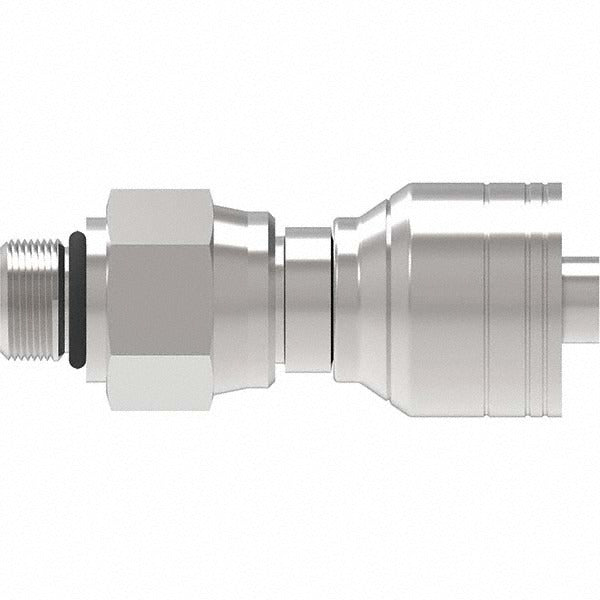

Eaton 06Z-R06-BG Hydraulic Hose Swivel Fitting 9/16-18 Unf

Product Description

The EATON 06Z-R06-BG is a male straight thread O-ring swivel fitting designed for hydraulic hose assemblies. It uses a 9/16-18 UNF thread with an O-ring face seal to create a leak-resistant connection at the hose-to-port interface. The swivel design allows the hose to be positioned without twisting during installation or routing. Constructed from steel for durability under hydraulic system pressures, this fitting is a standard replacement component used by hydraulic technicians and fluid power specialists on mobile and industrial equipment.

This fitting is suited for hydraulic systems requiring a 6 mm hose size with a 9/16-inch hose diameter. It is commonly used in mobile equipment, industrial machinery, and other fluid power applications where a reliable swivel connection is needed at a straight-thread port. The UNF thread standard makes it compatible with a wide range of hydraulic manifolds, cylinders, and valve bodies that use straight-thread O-ring boss ports.

Key Features

• Male straight thread O-ring swivel design provides a leak-resistant hydraulic connection
• 9/16-18 UNF thread for compatibility with standard straight-thread O-ring boss ports
• Steel construction for strength and resistance to hydraulic system pressures
• Swivel body allows hose positioning without inducing twist or torque stress
• Compact form factor: 2.72 inches length, 1.07 inches width, 1.07 inches height
• 7/8-inch hex size for standard wrench installation

Compatibility

Designed as an OEM-style replacement swivel fitting for hydraulic hose assemblies using a 6 mm hose size and 9/16-18 UNF straight-thread O-ring boss ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and drain the hydraulic system completely before removing or installing any fittings. Inspect the O-ring for damage before assembly and ensure the seating surface on the port is clean and free of burrs. Apply appropriate hydraulic fluid or assembly lubricant to the O-ring prior to tightening.
