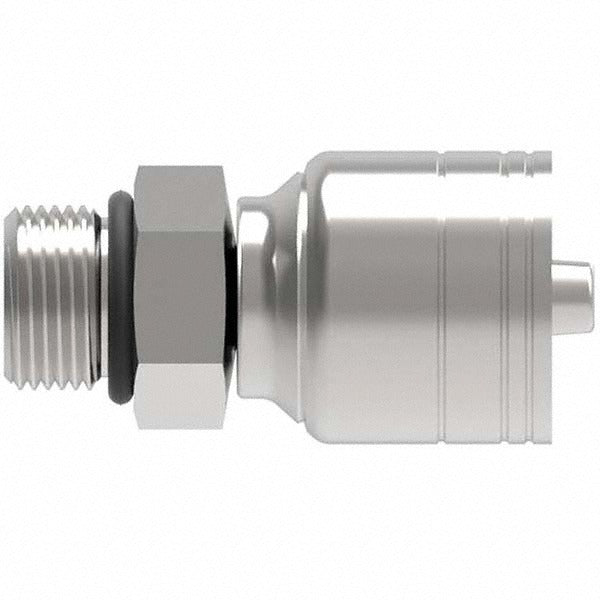

Eaton 06Z-P10-BG Hydraulic Hose Orb Fitting 6mm 7/8-14

Product Description

The EATON 06Z-P10-BG is a male straight thread O-ring boss (ORB) hydraulic hose fitting designed for use in hydraulic fluid power systems. Machined from steel, it provides a reliable, leak-resistant connection by seating an O-ring against a machined face, eliminating the need for thread sealant on the male end. The fitting accommodates a 6 mm hose size with a 7/8-14 thread and a 1-inch hex for standard wrench engagement. It is sized for use in medium-duty hydraulic circuits and is installed by hydraulic system technicians, mobile equipment mechanics, and industrial maintenance personnel.

This fitting is suited for hydraulic plumbing applications in industrial machinery, mobile equipment, and fluid power systems where a straight-thread O-ring boss connection is specified. The ORB thread form is common in manifolds, pumps, valves, and cylinders. Its steel construction handles the pressure demands typical of hydraulic circuits in both stationary and mobile applications. The compact dimensions make it practical for installations in tight routing scenarios.

Key Features

• Male straight thread O-ring boss (ORB) design provides a leak-resistant metal-face seal without pipe thread sealant
• Steel construction for durability in hydraulic fluid power environments
• 7/8-14 thread size for compatibility with standard ORB ports
• 6 mm hose size accommodates common small-bore hydraulic hose
• 1-inch hex allows engagement with standard open-end or combination wrenches
• Overall length of 2.05 inches suits space-constrained plumbing layouts

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for systems using standard O-ring boss (ORB) straight-thread ports with a 7/8-14 thread size and 6 mm hose connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring for damage before assembly and lubricate it lightly with clean hydraulic fluid prior to installation. Tighten to the fitting manufacturer's standard flat-face torque procedure using a backup wrench on the port to prevent component damage.
