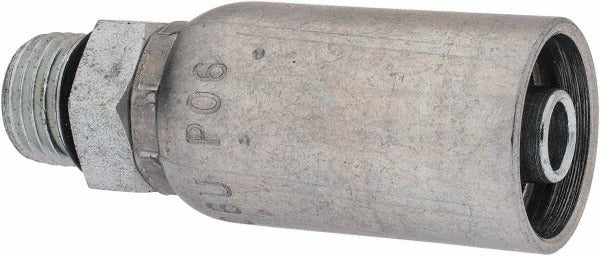

Eaton 06Z-P06-BG Hydraulic Hose O-ring Rigid Fitting 3/8 in

Product Description

The EATON 06Z-P06-BG is a male straight thread O-ring rigid fitting designed for hydraulic hose assemblies. Part of the EATON Z Series, this steel fitting connects hydraulic hoses to ports using a 9/16-18 straight thread with an O-ring seal to eliminate leak paths at the connection point. The fitting measures 3/8 inch hose diameter (0.375 inches ID and 0.375 inches OD) and uses a male pipe thread (MPT) threaded connection type. It meets SAE J1176 standards. Licensed hydraulic system technicians and fluid power specialists install this fitting in mobile and industrial hydraulic applications requiring a reliable, rigid straight-thread port connection.

This fitting is suited for hydraulic hose assembly work across mobile equipment, industrial machinery, and fluid power systems. The straight configuration simplifies routing in tight or direct-line installations. It is compatible with a wide range of EATON hydraulic hose series, making it a common choice for field assembly and shop fabrication of hydraulic lines. The 11/16-inch hex size allows standard wrench installation without special tooling.

Key Features

• Male straight thread O-ring rigid fitting provides leak-resistant port connections
• 3/8 inch hose size (0.375 inches ID, 0.375 inches OD) for standard mid-range hydraulic hose
• 9/16-18 thread size with MPT shaft type for direct port engagement
• Steel construction for durability in high-pressure hydraulic environments
• Meets SAE J1176 standard
• 11/16-inch hex size for wrench installation with common hand tools

Compatibility

Compatible with the following EATON hose series (select sizes noted): EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed the hydraulic system completely before removing or installing any fittings. Inspect the O-ring for damage before assembly and ensure the mating port thread is clean and undamaged. Torque the fitting according to the system manufacturer's specifications and applicable fluid power standards.
