Eaton 06Z-M06-BG Hydraulic Hose Swivel 90 Elbow Nptf

Product Description

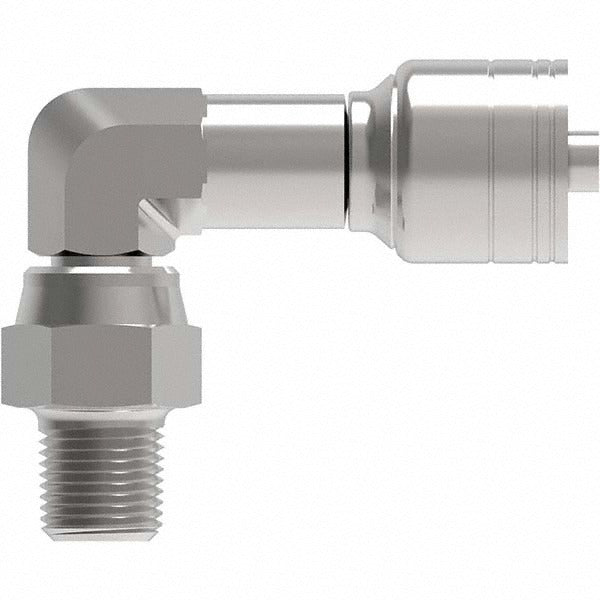

The EATON 06Z-M06-BG is a male pipe swivel 90-degree elbow hydraulic hose fitting machined from steel. It connects a hydraulic hose to a fixed port or manifold at a right angle, reducing stress on the hose and allowing cleaner routing in tight equipment bays. The fitting uses a 3/8-18 NPTF thread, which creates a pressure-tight seal on mating NPTF ports without requiring a separate sealant in most applications. At 0.38 pounds and compact overall dimensions, it is a direct-install component suited for mobile hydraulic systems, industrial machinery, and fluid-power circuits. Hydraulic technicians and fluid-power mechanics are the primary installers.

This fitting is designed for hydraulic hose assemblies where a 90-degree directional change is needed at the port connection. It is commonly installed on pumps, valves, cylinders, and manifold blocks in mobile equipment such as loaders, lifts, and skid steers, as well as stationary industrial hydraulic power units. The swivel design allows the hose end to rotate during installation, making it easier to achieve proper hose routing and prevent hose twist. It accepts a 6 mm hose size (3/8-inch hose diameter) on the hose end.

Key Features

• 90-degree swivel elbow design reduces hose stress and simplifies routing in confined spaces
• 3/8-18 NPTF thread provides a pressure-tight mechanical seal on compatible ports
• Steel construction for durability in demanding hydraulic system environments
• Swivel hose end rotates during assembly to prevent hose twist
• Compact dimensions support installation in space-restricted hydraulic circuits

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies requiring a 6 mm hose size with a 3/8-18 NPTF male pipe thread connection at a 90-degree elbow.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Inspect the mating port thread for damage before installation, and apply thread sealant only if required by the system specification for NPTF connections. Do not overtighten; follow the equipment manufacturer's torque guidelines for steel fittings on the specific port material.
