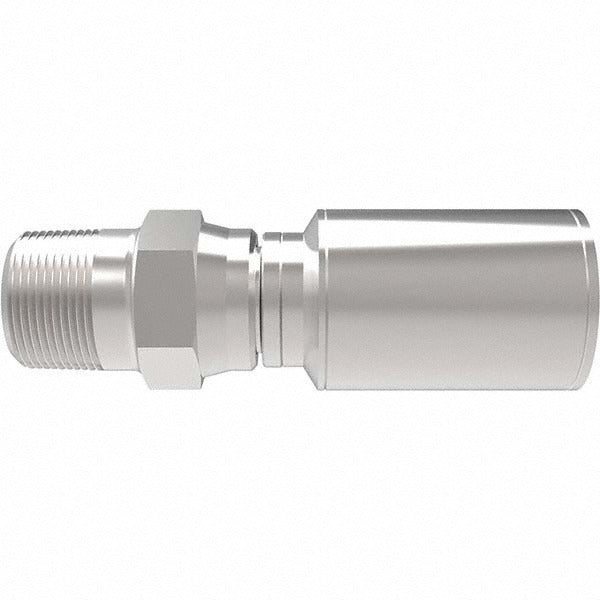

Eaton 06Z-J08-BG Hydraulic Hose Male Pipe Rigid Fitting

Product Description

The EATON 06Z-J08-BG is a male pipe rigid fitting designed for hydraulic hose assemblies in industrial and mobile hydraulic systems. This straight, threaded fitting connects a hose end to a pipe thread port using a 1/2-14 NPTF thread, creating a pressure-tight seal without the need for additional sealant tape when properly torqued. It features a 0.375 inch inside diameter and a 0.5 inch outside diameter, with an overall length of 2.85 inches. Constructed from steel, this fitting is suited for demanding hydraulic applications where durability and leak-free performance are required. It is typically installed by hydraulic technicians, fluid power specialists, or maintenance professionals working on hydraulic circuit assemblies.

This fitting is designed for use in hydraulic hose assembly applications across industrial equipment, mobile machinery, and fluid power systems. It belongs to EATON's Z Series and is rated for use with a wide range of EATON hose series, making it a versatile component for both original equipment builds and field repairs. It is appropriate for applications where a straight male pipe rigid connection is needed at a hose termination point.

Key Features

• 1/2-14 NPTF thread provides a dry-seal, pressure-tight connection
• Straight shape simplifies routing in tight or inline plumbing configurations
• 0.375 inch hose inside diameter and 0.5 inch outside diameter for precise hose fitment
• Overall length of 2.85 inches for consistent assembly dimensions
• Steel construction for durability in high-pressure hydraulic environments
• Meets SAE J1176 standards for hydraulic hose fittings

Compatibility

Designed for use with EATON hose series EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04 and selected sizes).

Installation Notes

This fitting should be installed by a qualified hydraulic technician or fluid power professional familiar with NPTF thread assembly practices. De-pressurize and fully isolate the hydraulic circuit before removing or installing any fittings. NPTF threads are designed to seal on the threads themselves; inspect thread condition before assembly and follow applicable SAE and equipment manufacturer torque guidelines. Do not over-tighten, as this can damage the threads or distort the fitting body.
