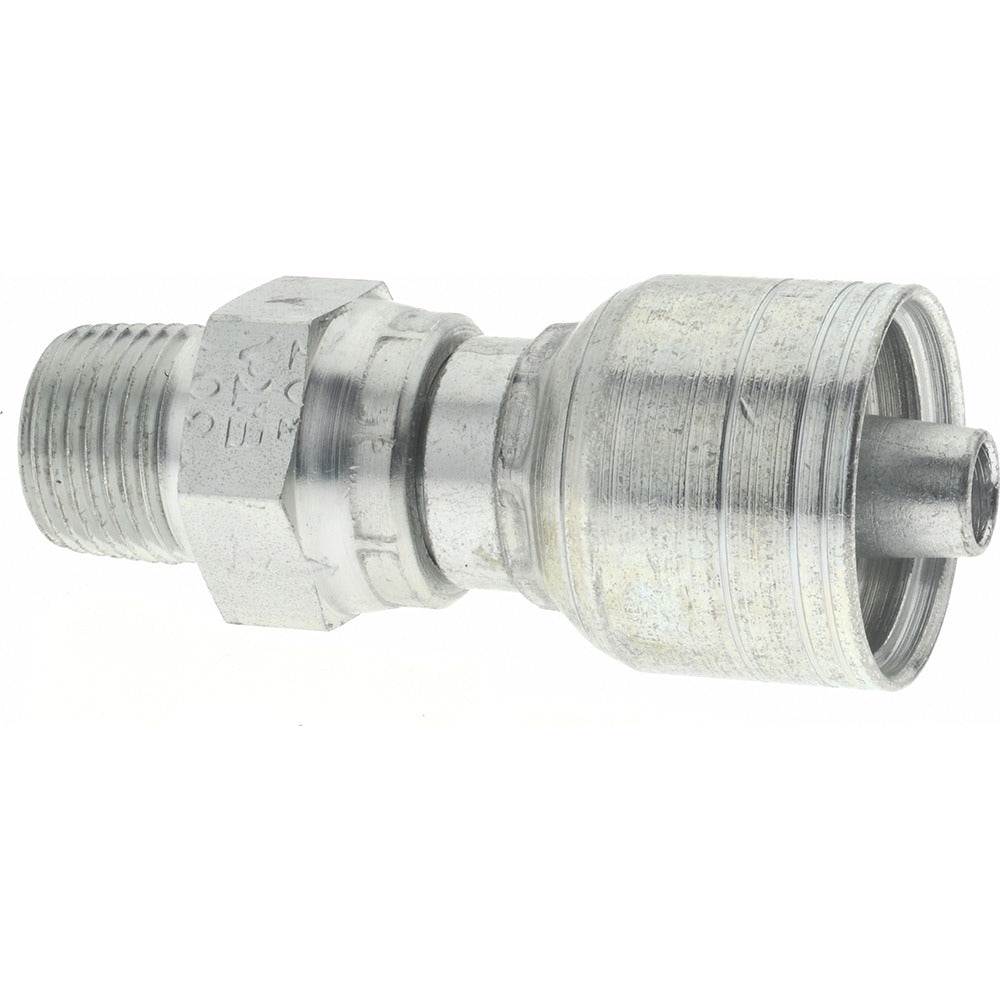

Eaton 06Z-J06-BG Hydraulic Hose Male Pipe Swivel Fitting

Product Description

The EATON 06Z-J06-BG is a male pipe swivel fitting designed for hydraulic hose assemblies in high-pressure fluid conveyance systems. Built from steel with an NPTF threaded connection, this straight fitting accepts 3/8-inch hose and mates to a 3/8-18 NPTF port. The swivel design allows the hose to be positioned without twisting the hose body during installation or routing. It carries an 11/16-inch hex for wrench engagement and conforms to SAE J1176 standards. This part is typically installed by hydraulic system technicians, industrial maintenance professionals, and mobile equipment mechanics working on hose-to-port connections in fluid power assemblies.

This fitting is suited for use in hydraulic systems requiring a straight male pipe swivel end connection at the hose termination point. It is compatible with a range of EATON hose series and is appropriate for both stationary industrial hydraulic circuits and mobile equipment applications. The NPTF thread form provides a pressure-tight metal-to-metal seal without requiring additional sealant in many installations, making it a reliable choice for maintenance and new-build work alike.

Key Features

• Male pipe swivel design allows hose positioning without twisting during assembly
• NPTF thread form delivers a pressure-tight metal-to-metal seal
• 3/8-18 thread size fits standard NPTF ports
• Straight shape simplifies inline hose-to-port routing
• Steel construction suited for hydraulic fluid service
• Meets SAE J1176 standard for hydraulic hose fittings

Compatibility

Designed for use with EATON hose series including EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with fluid power systems. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fittings. Use an appropriate wrench on the 11/16-inch hex to achieve proper engagement without over-torquing the NPTF threads. Inspect mating port threads for damage or contamination before assembly.
