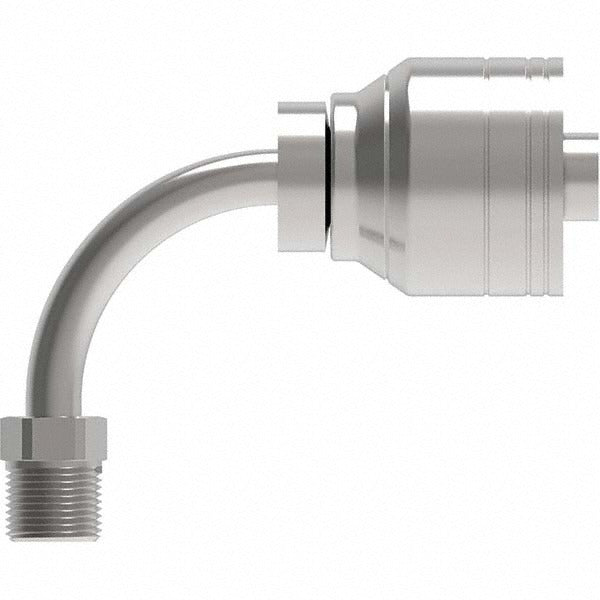

Eaton 06Z-B66-BG Hydraulic Hose Fitting 6mm 5/8-18 Unf

Product Description

The EATON 06Z-B66-BG is a steel hydraulic hose fitting configured as an inverted male swivel 90-degree elbow. It accepts a 6 mm hose size with a 5/8-inch hose diameter and connects via a 5/8-18 UNF thread. The 90-degree elbow geometry allows hose routing in tight or angled installations where a straight fitting would create stress or clearance issues. The swivel design lets the hose body rotate during installation so the assembly can be torqued to the port without twisting the hose. Licensed hydraulic technicians and fluid power mechanics install this fitting in mobile equipment, industrial machinery, and hydraulic power unit plumbing.

This fitting is suited for hydraulic systems requiring a compact 90-degree direction change at the hose end. The inverted male swivel configuration is common in mobile hydraulic circuits found on construction equipment, agricultural machinery, and industrial presses. It is used wherever a hose must connect to a female UNF port at a right angle while maintaining rotational adjustability during assembly. The 6 mm hose size makes it appropriate for smaller-bore hydraulic lines in medium-pressure circuits.

Key Features

• 90-degree elbow geometry supports angled hose routing in space-constrained installations
• Swivel design allows hose orientation adjustment without twisting the hose body
• 5/8-18 UNF thread provides a standardized connection to compatible female ports
• Steel construction delivers durability in hydraulic fluid environments
• 6 mm hose size with 5/8-inch hose diameter for smaller-bore circuit applications

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for systems using 5/8-18 UNF female ports and 6 mm steel hose ends requiring a 90-degree inverted male swivel termination.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Clean threads and inspect for damage before assembly. Do not overtighten — use the fitting hex to achieve proper torque rather than holding the hose body, and consult the applicable fluid power or equipment service standard for thread engagement requirements.
