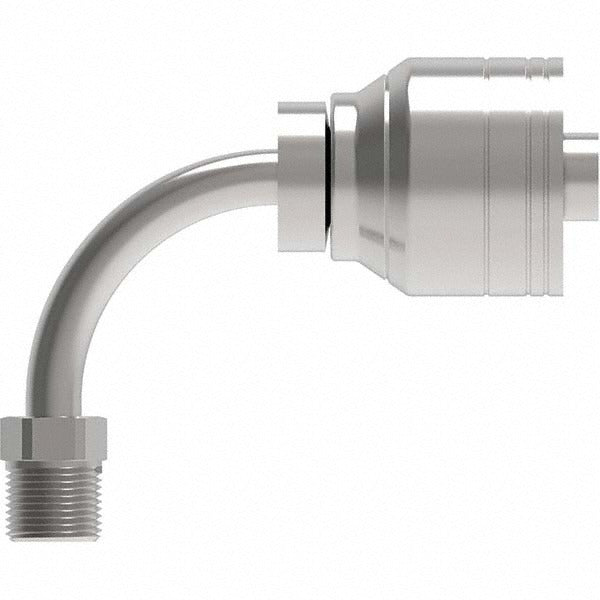

Eaton 06Z-B65-BG Hydraulic Hose 90 Elbow 6mm 1/2-20 Unf

Product Description

The EATON 06Z-B65-BG is a steel hydraulic hose fitting configured as an inverted male swivel 90-degree elbow. It is designed to connect a 6 mm hydraulic hose line to a 1/2-20 UNF threaded port at a right angle, allowing hose routing in confined spaces where a straight fitting will not clear surrounding components. The swivel feature allows the hose to be oriented without twisting during final tightening. This fitting is constructed from steel for durability under hydraulic system pressures. It is installed by hydraulic system technicians and mobile equipment mechanics working on fluid power circuits.

This fitting is suited for hydraulic plumbing applications on mobile equipment, agricultural machinery, construction equipment, and industrial machinery wherever a 90-degree direction change is required between a hose end and a UNF-threaded port. The 1/2-20 UNF thread size and 6 mm hose size make it a direct-connect solution for small-bore hydraulic lines. The inverted male swivel design provides a leak-resistant, repositionable connection point at the hose assembly.

Key Features

• Inverted male swivel 90-degree elbow configuration for right-angle hose routing
• Fits 6 mm hydraulic hose with 1/2-inch hose diameter
• 1/2-20 UNF thread for compatibility with standard UNF-threaded hydraulic ports
• Steel construction for hydraulic service durability
• Swivel design allows hose orientation adjustment without twisting the hose assembly
• Compact form factor: 2.75 inches length, 1.07 inches width, 2.26 inches height

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for systems using 6 mm hose ends and 1/2-20 UNF threaded ports requiring a 90-degree inverted male swivel connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Use the appropriate open-end or flare-nut wrench sized to the 1/2-inch hex; do not use adjustable wrenches that may round the fitting hex. Verify thread engagement and torque to the system manufacturer's specification for the fitting size and material — do not over-torque steel fittings into aluminum or cast-iron ports. Inspect the mating port threads and sealing surface for damage before assembly.
