Eaton 06Z-B64-BG Hydraulic Hose 90 Elbow 6mm 7/16-24 Uns

Product Description

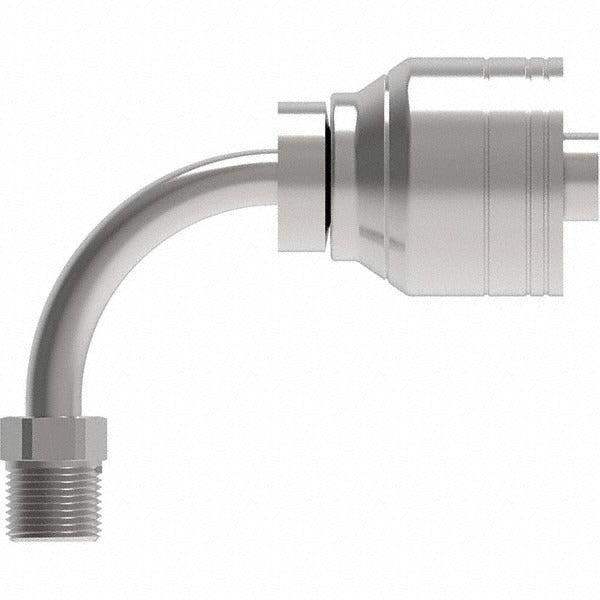

The EATON 06Z-B64-BG is a steel hydraulic hose fitting configured as an inverted male swivel 90-degree elbow. It connects a 6 mm hose to a 7/16-24 UNS threaded port, redirecting hose routing at a 90-degree angle while allowing the hose end to swivel for easier alignment during installation. The fitting is machined from steel for durability under hydraulic system pressures. This type of fitting is typically installed by hydraulic system technicians, fleet mechanics, and industrial maintenance professionals working on mobile or stationary hydraulic circuits.

This fitting is suited for hydraulic hose assemblies that require a compact 90-degree directional change at the connection point. The inverted male swivel design reduces hose stress and allows final torque positioning without twisting the hose body. Common applications include agricultural equipment, construction machinery, industrial hydraulic power units, and mobile vehicle hydraulic systems where space-efficient routing is required.

Key Features

• Inverted male swivel 90-degree elbow configuration for directional hose routing
• 7/16-24 UNS thread for secure port connection
• Fits 6 mm hose size with a 7/16 inch hose diameter
• Steel construction for hydraulic system pressure resistance
• 7/16 inch hex size for standard wrench installation
• Swivel design allows hose alignment without twisting during assembly

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for systems using 6 mm hose with 7/16-24 UNS threaded ports requiring a 90-degree elbow connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and de-energize the hydraulic system completely before removing or installing any fittings. Use a properly sized wrench on the 7/16 inch hex to avoid rounding. Follow applicable industry standards and equipment OEM torque guidelines for hydraulic fittings of this thread size and material.
