Eaton 06Z-A66-BG Hydraulic Hose Fitting 90 Elbow

Product Description

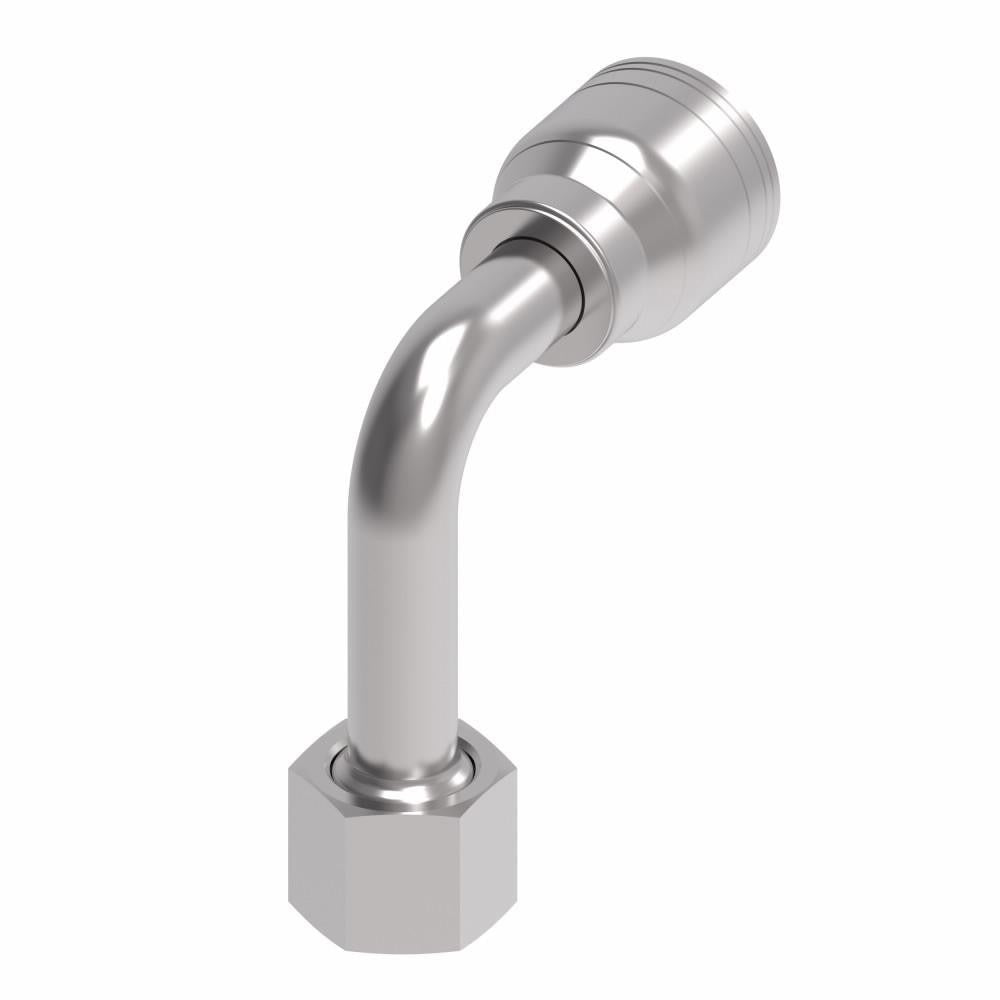

The EATON 06Z-A66-BG is a female ORS swivel long drop 90-degree elbow fitting designed for hydraulic hose assemblies. Built from steel with a FOR-SEAL shaft type, this fitting connects hose ends to hydraulic system ports using a threaded 11/16-16 interface. The 90-degree elbow geometry allows hose routing in tight or angled installations where a straight fitting would create interference or excessive hose bend. With a hose inside diameter of 0.375 inches and an outside diameter of 0.37 inches, it is sized for 6 mm (dash-6) hydraulic hose. The overall length is 2.34 inches. It meets SAE J1176 standards and belongs to EATON's Z series of hydraulic fittings. Licensed hydraulic or fluid-power technicians typically specify and install this fitting.

This fitting is suited for hydraulic system plumbing in mobile equipment, industrial machinery, and related applications where hose lines must transition at a 90-degree angle. The swivel design allows the hose end to be positioned and torqued without twisting the hose body. The long drop configuration provides additional clearance between the port face and the hose run, which is useful in congested valve or manifold areas. The 13/16-inch hex provides wrench access for installation and service.

Key Features

• Female ORS swivel long drop 90-degree elbow configuration for angled hose routing
• Steel construction for durability in high-pressure hydraulic service
• FOR-SEAL shaft type for reliable sealing at the port interface
• 11/16-16 threaded connection meets SAE J1176 standards
• Swivel design prevents hose twist during installation and torquing
• 13/16-inch hex for standard wrench access

Compatibility

Designed for use with EATON hose series including EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04 and selected sizes) as specified in EATON product documentation.

Installation Notes

Installation should be performed by a qualified fluid-power technician or hydraulic system mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Use the 13/16-inch hex to torque the fitting to the port; do not use the hose or hose end as a lever. Verify thread engagement and inspect the ORS sealing surface for nicks or debris before final assembly.
