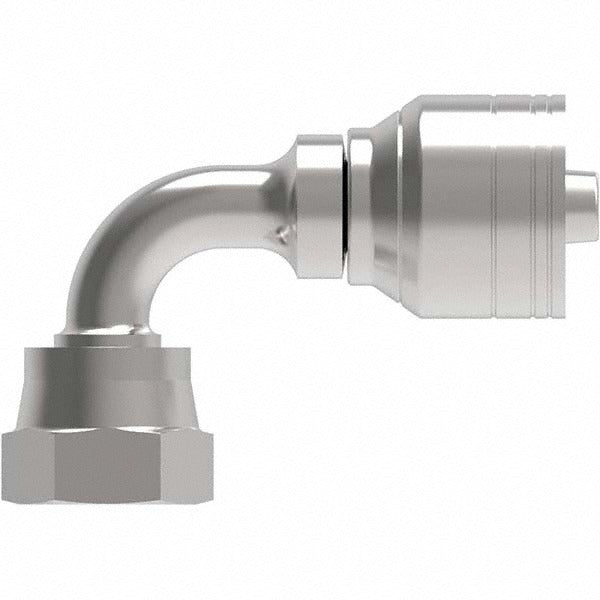

Eaton 06Z-A28-BG Female Ors Swivel 90 Elbow Hose Fitting

Product Description

The EATON 06Z-A28-BG is a female ORS swivel short drop 90-degree elbow hydraulic hose fitting designed for use in high-pressure hydraulic fluid lines. Manufactured from steel, this fitting uses a FOR-SEAL shaft type and accepts a 6 mm hose size with a 13/16-16 inch thread size. The 90-degree elbow configuration allows routing of hydraulic lines in tight spaces where a straight fitting will not clear adjacent components. It is installed by hydraulic system technicians and fluid power mechanics on mobile equipment, industrial machinery, and similar hydraulic circuit applications.

This fitting is suited for applications where hose assemblies must change direction sharply at the connection point. The short drop elbow profile keeps the fitting closer to the port face, reducing leverage stress on the hose end. It is commonly used in mobile hydraulics, construction equipment, agricultural machinery, and industrial hydraulic systems that run steel-threaded ORS port connections. The swivel design allows the hose to be positioned without twisting the hose body during installation or service.

Key Features

• Female ORS swivel design allows hose positioning without inducing twist in the hose assembly
• Short drop 90-degree elbow profile reduces clearance requirements at the port connection
• Steel construction for durability in high-pressure hydraulic service
• FOR-SEAL shaft type for reliable sealing at the threaded interface
• 13/16-16 inch thread size with 6 mm hose size compatibility
• 15/16 inch hex size for standard wrench installation

Compatibility

Designed as a replacement-style female ORS swivel short drop 90-degree elbow fitting for hydraulic hose assemblies using a 6 mm hose size and 13/16-16 inch ORS port thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Use the 15/16 inch hex to tighten the fitting to the port; do not use the hose or swivel body as a torque point. Inspect the ORS port face and fitting seat for nicks or debris before assembly to ensure a leak-free seal.
