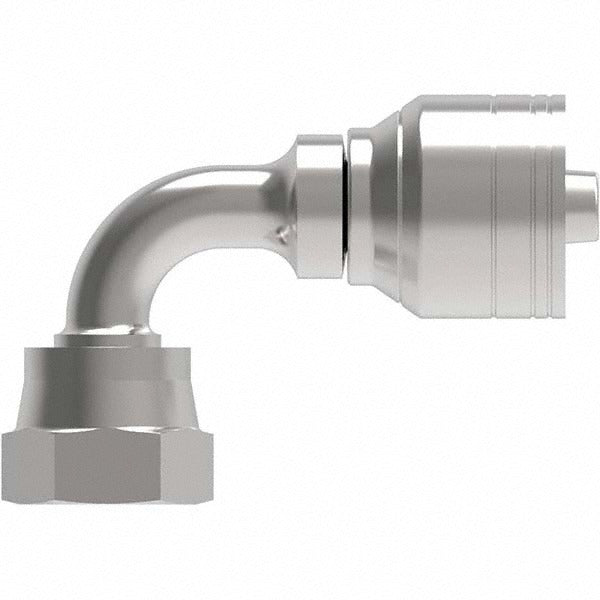

Eaton 06Z-A26-BG Female Ors Swivel 90 Elbow Hydraulic Fitting

Product Description

The EATON 06Z-A26-BG is a female ORS swivel short drop 90-degree elbow hydraulic hose fitting designed for use in high-pressure hydraulic systems. Constructed from steel, this fitting connects a hydraulic hose to a port or component at a 90-degree angle, reducing stress on the hose by routing it away from tight clearances. The FOR-SEAL shaft type ensures a reliable, leak-resistant connection at the swivel joint. The 6 mm hose size with an 11/16-16 thread matches common hydraulic line configurations. Installation is typically performed by hydraulic system technicians, equipment mechanics, or maintenance professionals working on mobile or industrial hydraulic equipment.

This fitting is suited for use in mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic systems where a 90-degree hose routing is required. The short drop design positions the hose connection closer to the port, making it a practical choice in space-constrained installations. The swivel feature allows the hose to be positioned without twisting the hose body during assembly or service.

Key Features

• Female ORS swivel design allows hose positioning without twisting the hose during installation
• Short drop 90-degree elbow reduces hose stress in tight routing applications
• FOR-SEAL shaft type provides a reliable, leak-resistant swivel connection
• Steel construction for durability in high-pressure hydraulic service
• 11/16-16 thread size with 6 mm hose size for compatibility with common hydraulic line configurations
• 13/16-inch hex size for standard wrench installation

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for systems using female ORS swivel 90-degree elbow connections with a 6 mm hose size and 11/16-16 thread specification.

Installation Notes

Hydraulic fittings should be installed by a qualified hydraulic technician or equipment mechanic. Always depressurize and bleed the hydraulic system fully before removing or installing any fitting. Use the 13/16-inch hex to torque the fitting to the hydraulic port per the system manufacturer's specifications — do not over-tighten, as steel threads can be damaged. Inspect the ORS sealing surface and swivel seal before installation and replace if any damage or wear is present.
