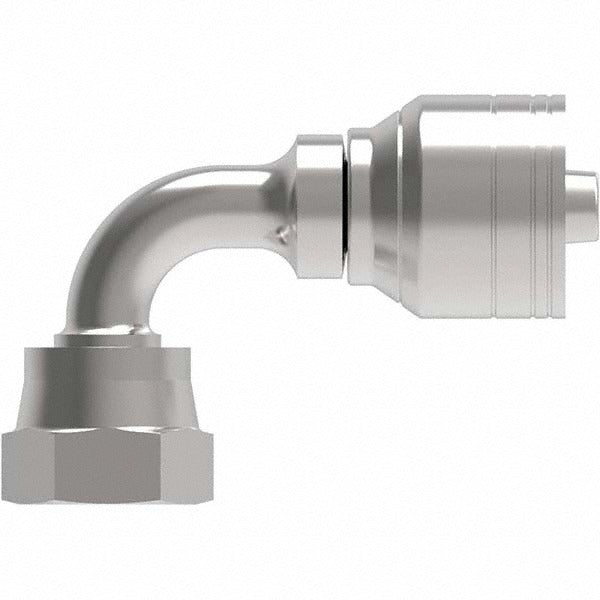

Eaton 06Z-A24-BG Female Ors Swivel 90 Elbow Fitting 6mm

Product Description

The EATON 06Z-A24-BG is a female ORS swivel short drop 90-degree elbow hydraulic hose fitting designed for use in high-pressure hydraulic plumbing applications. Manufactured from steel with a FOR-SEAL shaft type, this fitting accepts a 6 mm hose size with a 9/16-18 thread and a 9/16-inch hose diameter. The 90-degree elbow geometry provides a compact directional change in tight routing environments. The swivel design allows the hose to be positioned without twisting during installation. This fitting is installed by hydraulic technicians and fluid power mechanics in mobile equipment, industrial machinery, and related hydraulic systems.

This fitting is suited for hydraulic line assemblies where a short drop 90-degree connection is required at a port or component interface. The female ORS (O-Ring Seal) thread form provides a reliable, leak-resistant connection by sealing against a machined seat with an O-ring. It is commonly used in mobile hydraulic systems on construction, agricultural, and industrial equipment where space-efficient routing and vibration-resistant connections are required.

Key Features

• Female ORS swivel interface provides an O-ring face seal for reliable, leak-resistant hydraulic connections
• Short drop 90-degree elbow geometry allows compact hose routing in confined spaces
• FOR-SEAL shaft type for positive sealing performance
• Steel construction for durability in demanding hydraulic service
• 9/16-18 thread size with 11/16-inch hex for standard wrench engagement
• Swivel design prevents hose twist during assembly and installation

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for systems using 6 mm hose with 9/16-18 female ORS swivel port connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Inspect the O-ring seat and O-ring for damage before assembly, and torque to the fitting manufacturer's specifications using the hex flats provided. Follow all applicable fluid power and equipment manufacturer service procedures when working on hydraulic systems.
